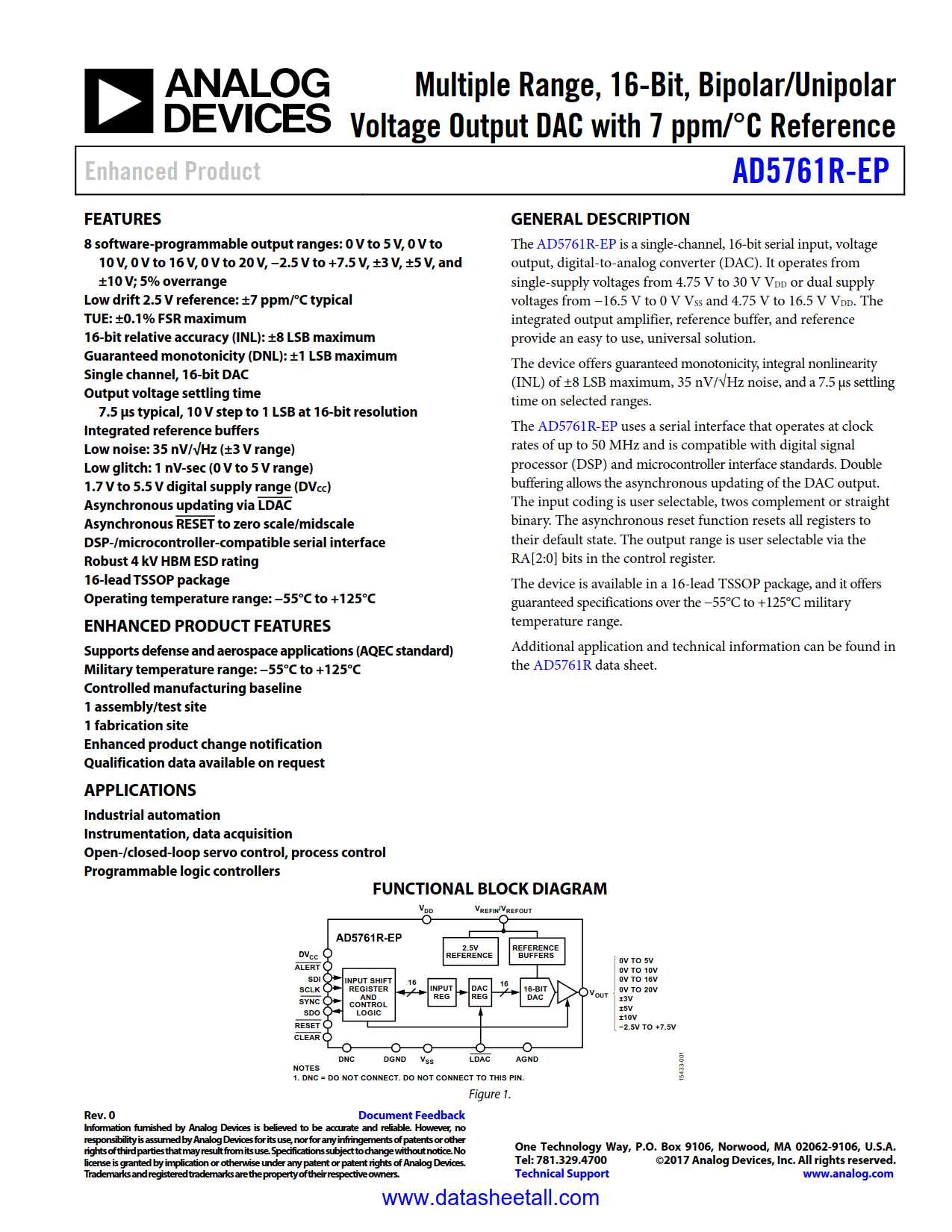

AD5761R-EP Datasheet

• 8 software-programmable output ranges: 0 V to +5 V, 0 V to +10 V, 0 V to +16 V, 0 V to +20 V, ±3 V, ±5 V, ±10 V, and −2.5 V to +7.5 V; 5% overrange
• Low drift 2.5 V reference: ±7 ppm/°C typical
• TUE: ±0.1% FSR maximum
• 16-bit relative accuracy (INL): ±8 LSB maximum
• Guaranteed monotonicity (DNL): ±1 LSB maximum
• Single channel, 16-bit DAC
• Output voltage settling time 7.5 μs typical, 10 V step to 1 LSB at 16-bit resolution
• Integrated reference buffers
• Low noise: 35 nV/√Hz (±3 V range)
• Low glitch: 1 nV-sec (0 V to 5 V range)
• 1.7 V to 5.5 V digital supply range (DVCC)
• Asynchronous updating via LDAC
• Asynchronous RESET to zero scale/midscale
• DSP-/microcontroller-compatible serial interface
• Robust 4 kV HBM ESD rating
• 16-lead TSSOP package
• Operating temperature range: −55°C to +125°C

ENHANCED PRODUCT FEATURES

• supports defense and aerospace applications (AQEC standard)
• Military temperature range: −55°C to +125°C
• Controlled manufacturing baseline
• 1 assembly/test site
• 1 fabrication site
• Enhanced product change notification
• Qualification data available on request

• Industrial automation
• Instrumentation, data acquisition
• Open-/closed-loop servo control, process control
• Programmable logic controllers

The AD5761R-EP is a single-channel, 16-bit serial input, voltage output, digital-to-analog converter (DAC). It operates from single-supply voltages from 4.75 V to 30 V VDD or dual supply voltages from −16.5 V to 0 V VSS and 4.75 V to 16.5 V VDD. The integrated output amplifier, reference buffer, and reference provide an easy to use, universal solution.

The device offers guaranteed monotonicity, integral nonlinearity (INL) of ±8 LSB maximum, 35 nV/√Hz noise, and a 7.5 μs settling time on selected ranges.

The AD5761R-EP uses a serial interface that operates at clock rates of up to 50 MHz and is compatible with digital signal processor (DSP) and microcontroller interface standards. Double buffering allows the asynchronous updating of the DAC output. The input coding is user selectable, twos complement or straight binary. The asynchronous reset function resets all registers to their default state. The output range is user selectable via the RA[2:0] bits in the control register.

The device is available in a 16-lead TSSOP package, and it offers guaranteed specifications over the −55°C to +125°C military temperature range.

Additional application and technical information can be found in the AD5761R data sheet.
