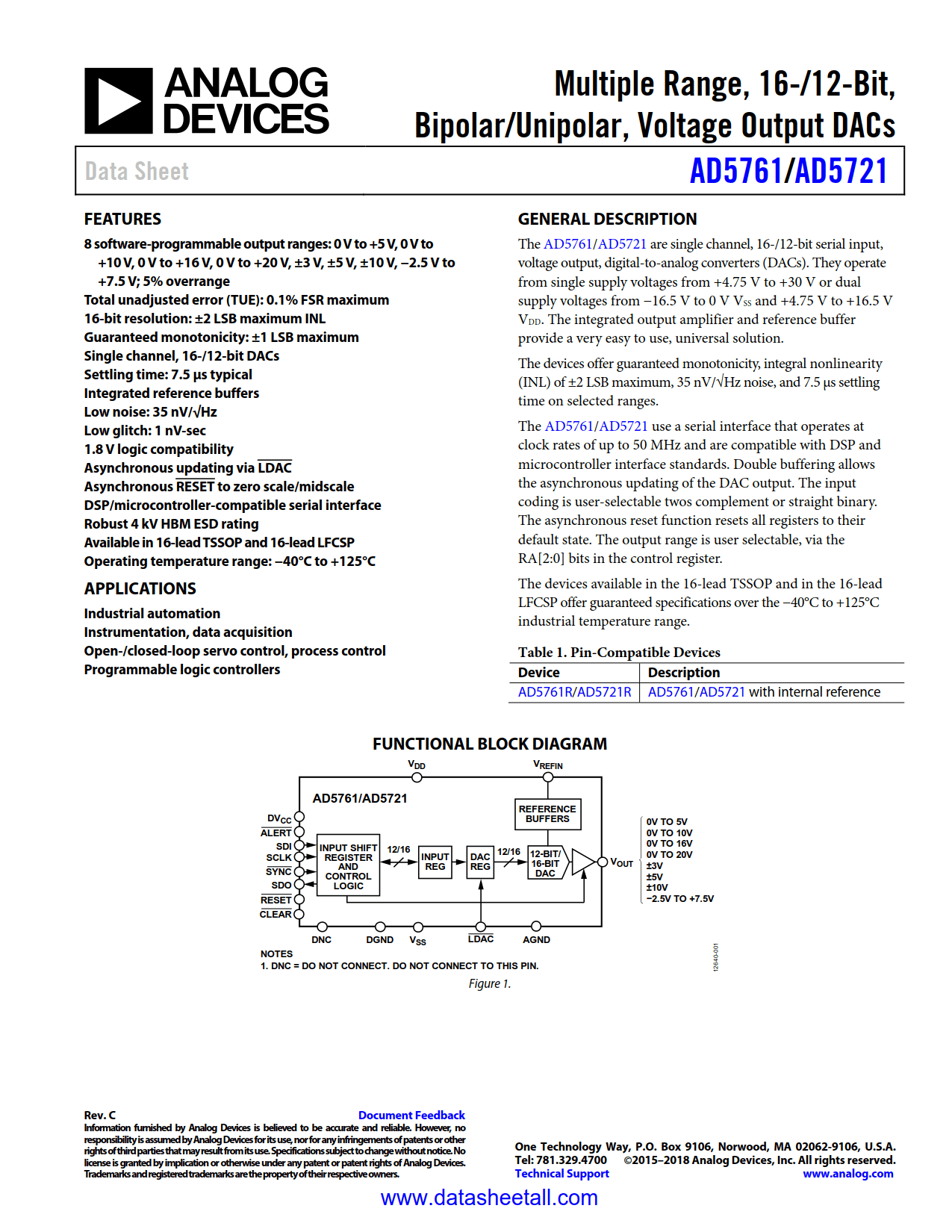

AD5721 Datasheet

• 8 software-programmable output ranges: 0 V to +5 V, 0 V to +10 V, 0 V to +16 V, 0 V to +20 V, ±3 V, ±5 V, ±10 V, −2.5 V to +7.5 V; 5% overrange
• Total unadjusted error (TUE): 0.1% FSR maximum
• 16-bit resolution: ±2 LSB maximum INL
• Guaranteed monotonicity: ±1 LSB maximum
• Single channel, 12-bit DACs
• Settling time: 7.5 μs typical
• Integrated reference buffers
• Low noise: 35 nV/√Hz
• Low glitch: 1 nV-sec
• 1.8 V logic compatibility
• Asynchronous updating via LDAC
• Asynchronous RESET to zero scale/midscale
• DSP/microcontroller-compatible serial interface
• Robust 4 kV HBM ESD rating
• Available in 16-lead TSSOP and 16-lead LFCSP
• Operating temperature range: −40°C to +125°C

• Industrial automation
• Instrumentation, data acquisition
• Open-/closed-loop servo control, process control
• Programmable logic controllers

The AD5721 are single channel, 12-bit serial input, voltage output, digital-to-analog converters (DACs). They operate from single supply voltages from +4.75 V to +30 V or dual supply voltages from −16.5 V to 0 V V_SS and +4.75 V to +16.5 V V_DD. The integrated output amplifier and reference buffer provide a very easy to use, universal solution.

The devices offer guaranteed monotonicity, integral nonlinearity (INL) of ±2 LSB maximum, 35 nV/√Hz noise, and 7.5 μs settling time on selected ranges.

The AD5721 use a serial interface that operates at clock rates of up to 50 MHz and are compatible with DSP and microcontroller interface standards. Double buffering allows the asynchronous updating of the DAC output. The input coding is user-selectable twos complement or straight binary. The asynchronous reset function resets all registers to their default state. The output range is user selectable, via the RA[2:0] bits in the control register.

The devices available in the 16-lead TSSOP and in the 16-lead LFCSP offer guaranteed specifications over the −40°C to +125°C industrial temperature range.
