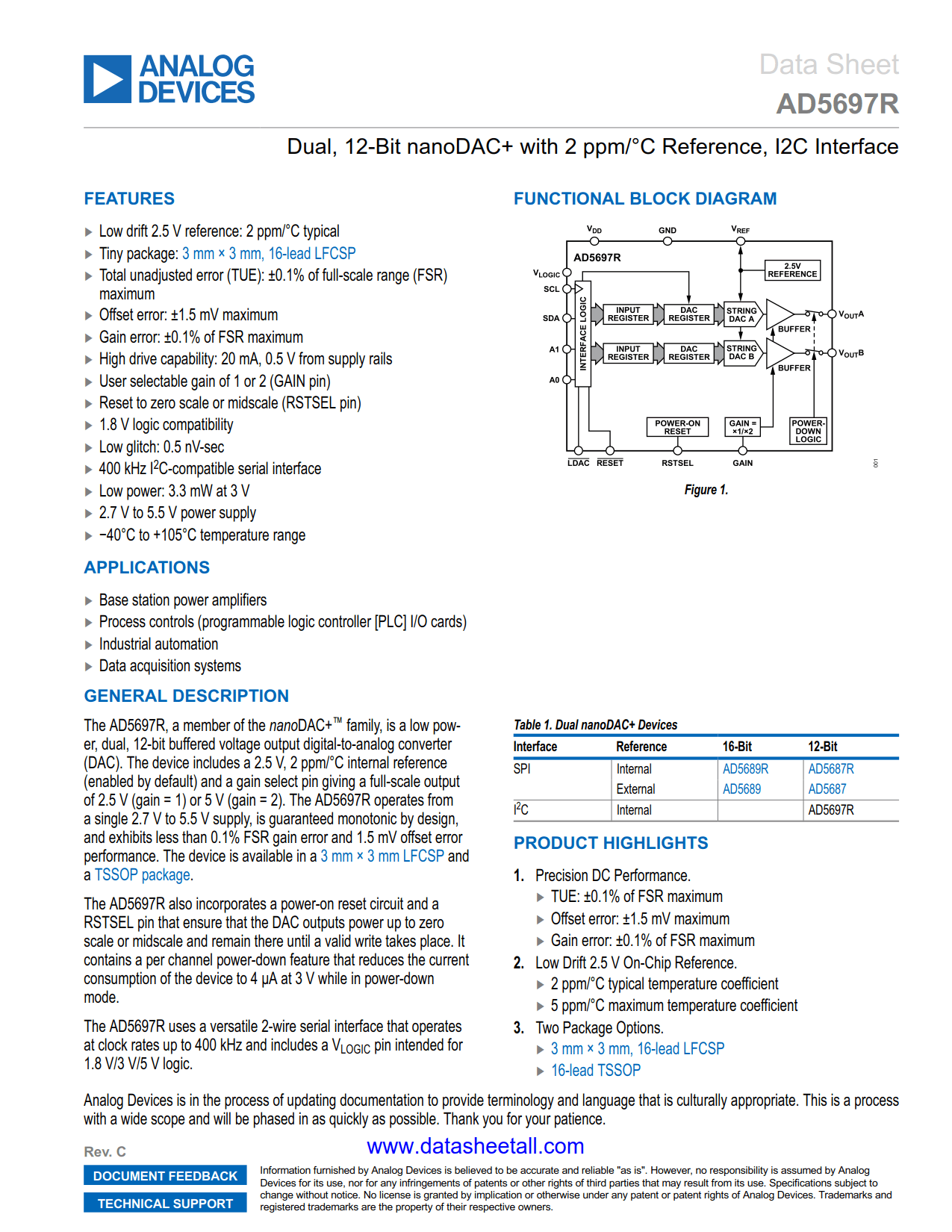

AD5697R Datasheet

Dual 12-Bit nanoDAC+™ with 2 ppm/°C Reference, I2C Interface

Part No.:
AD5697R
Manufacturer:
Analog Devices, Inc.
Page:
28 Pages
Size:
1019 KB
Views:
0
Update Time:
2026-01-26 10:59:23

AD5697R DataSheet Applicable Part

Part No. In Stock Price Packaging SPQ Marking MSL Pins Temp Range Package Description
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

AD5697R DataSheet PDF

AD5697R Features

  • Low drift 2.5 V reference: 2 ppm/°C typical
  • Tiny package: 3 mm × 3 mm, 16-lead LFCSP
  • Total unadjusted error (TUE): ±0.1% of full-scale range (FSR) maximum
  • Offset error: ±1.5 mV maximum
  • Gain error: ±0.1% of FSR maximum
  • High drive capability: 20 mA, 0.5 V from supply rails
  • User selectable gain of 1 or 2 (GAIN pin)
  • Reset to zero scale or midscale (RSTSEL pin)
  • 1.8 V logic compatibility
  • Low glitch: 0.5 nV-sec
  • 400 kHz I2C-compatible serial interface
  • Low power: 3.3 mW at 3 V
  • 2.7 V to 5.5 V power supply
  • −40°C to +105°C temperature range

AD5697R Applications

  • Base station power amplifiers
  • Process controls (programmable logic controller [PLC] I/O cards)
  • Industrial automation
  • Data acquisition systems

AD5697R Description

The AD5697R, a member of the nanoDAC+™ family, is a low power, dual, 12-bit buffered voltage output digital-to-analog converter (DAC). The device includes a 2.5 V, 2 ppm/°C internal reference (enabled by default) and a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The AD5697R operates from a single 2.7 V to 5.5 V supply, is guaranteed monotonic by design, and exhibits less than 0.1% FSR gain error and 1.5 mV offset error performance. The device is available in a 3 mm × 3 mm LFCSP and a TSSOP package.

The AD5697R also incorporates a power-on reset circuit and a RSTSEL pin that ensure that the DAC outputs power up to zero scale or midscale and remain there until a valid write takes place. It contains a per channel power-down feature that reduces the current consumption of the device to 4 µA at 3 V while in power-down mode.

The AD5697R uses a versatile 2-wire serial interface that operates at clock rates up to 400 kHz and includes a VLOGIC pin intended for 1.8 V/3 V/5 V logic.

PRODUCT HIGHLIGHTS

  1. Precision DC Performance.
    • TUE: ±0.1% of FSR maximum
    • Offset error: ±1.5 mV maximum
    • Gain error: ±0.1% of FSR maximum
  2. Low Drift 2.5 V On-Chip Reference.
    • 2 ppm/°C typical temperature coefficient
    • 5 ppm/°C maximum temperature coefficient
  3. Two Package Options.
    • 3 mm × 3 mm, 16-lead LFCSP
    • 16-lead TSSOP
