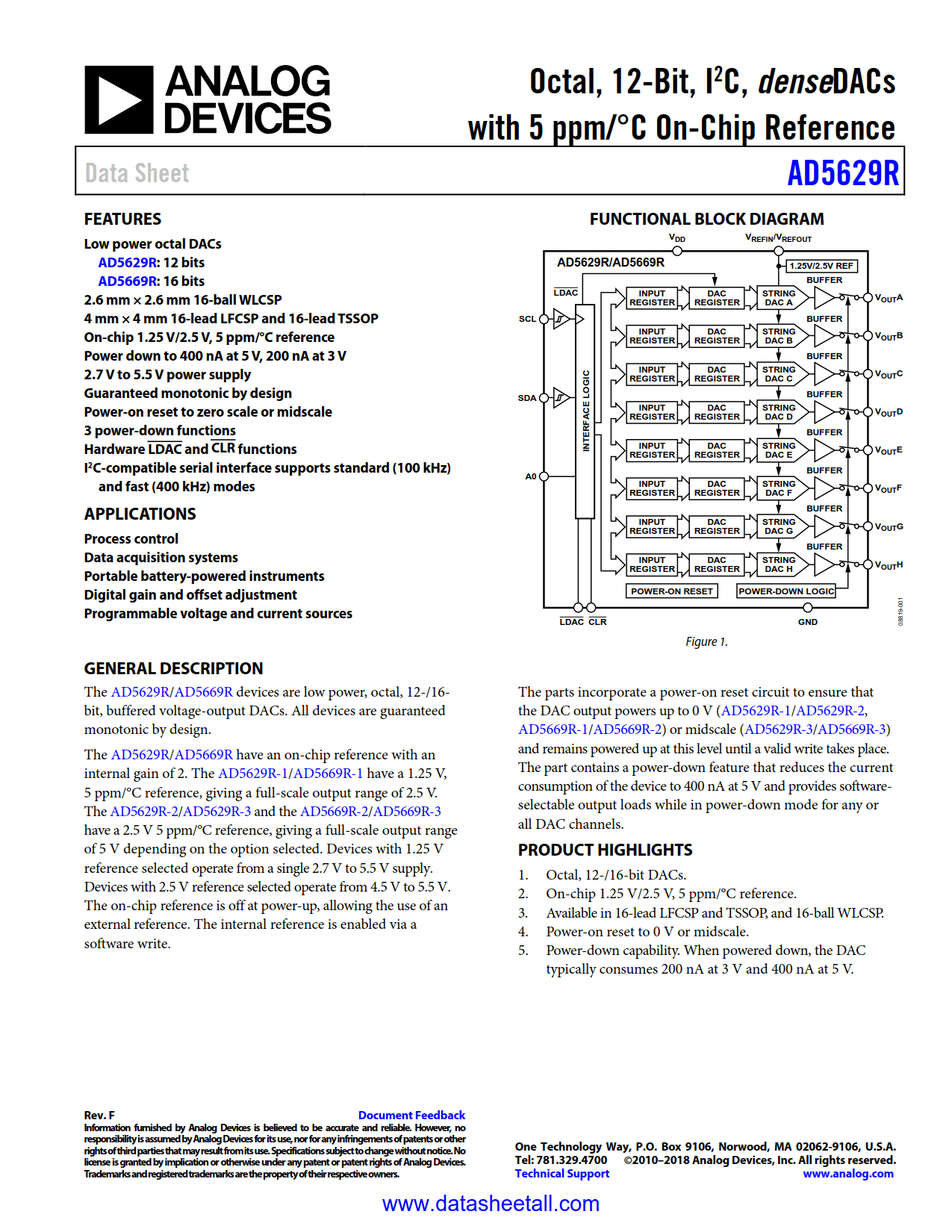

AD5629R Datasheet

• Low power octal DACs: 12 bits
• 2.6 mm × 2.6 mm 16-ball WLCSP
• 4 mm × 4 mm 16-lead LFCSP and 16-lead TSSOP
• On-chip 1.25 V/2.5 V, 5 ppm/°C reference
• Power down to 400 nA at 5 V, 200 nA at 3 V
• 2.7 V to 5.5 V power supply
• Guaranteed monotonic by design
• Power-on reset to zero scale or midscale
• 3 power-down functions
• Hardware LDAC and CLR functions
• I²C-compatible serial interface supports standard (100 kHz) and fast (400 kHz) modes

• Process control
• Data acquisition systems
• Portable battery-powered instruments
• Digital gain and offset adjustment
• Programmable voltage and current sources

The AD5629R device is a low power, octal, 12-bit, buffered voltage-output DACs. It operates from a single 2.7 V to 5.5 V supply and is guaranteed monotonic by design.

The AD5629R have an on-chip reference with an internal gain of 2. The AD5629R-1/AD5669R-1 have a 1.25 V, 5 ppm/°C reference, giving a full-scale output range of 2.5 V. The AD5629R-2/AD5629R-3 have a 2.5 V 5 ppm/°C reference, giving a full-scale output range of 5 V depending on the option selected. Devices with 1.25 V reference selected operate from a single 2.7 V to 5.5 V supply. Devices with 2.5 V reference selected operate from 4.5 V to 5.5 V. The on-chip reference is off at power-up, allowing the use of an external reference. The internal reference is enabled via a software write.

The part incorporates a power-on reset circuit that ensures that the DAC output powers up to 0 V and remains powered up at this level until a valid write takes place. The part contains a power-down feature that reduces the current consumption of the device to 400 nA at 5 V and provides software-selectable output loads while in power-down mode for any or all DAC channels.
