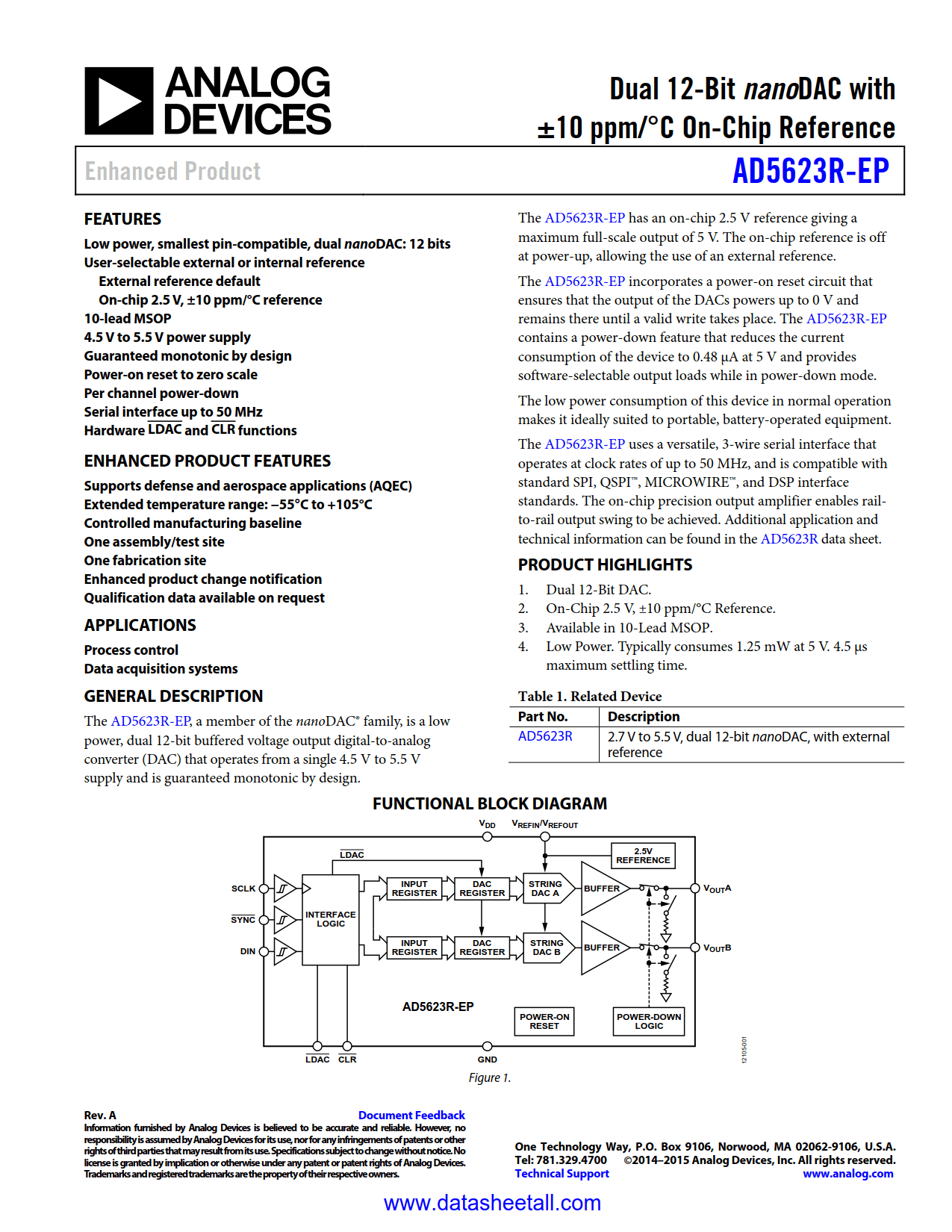

AD5623R-EP Datasheet

• Low power, smallest pin-compatible, dual nanoDAC: 12 bits
• User-selectable external or internal reference
  • External reference default
  • On-chip 2.5 V, ±10 ppm/°C reference
• 10-lead MSOP
• 4.5 V to 5.5 V power supply
• Guaranteed monotonic by design
• Power-on reset to zero scale
• Per channel power-down
• Serial interface up to 50 MHz
• Hardware LDAC and CLR functions

• Supports defense and aerospace applications (AQEC)
• Extended temperature range: −55°C to +105°C
• Controlled manufacturing baseline
• One assembly/test site
• One fabrication site
• Enhanced product change notification
• Qualification data available on request

• Process control
• Data acquisition systems

The AD5623R-EP, a member of the nanoDAC^® family, is a low power, dual 12-bit buffered voltage output digital-to-analog converter (DAC) that operates from a single 4.5 V to 5.5 V supply and is guaranteed monotonic by design.

The AD5623R-EP has an on-chip 2.5 V reference giving a maximum full-scale output of 5 V. The on-chip reference is off at power-up, allowing the use of an external reference.

The AD5623R-EP incorporates a power-on reset circuit that ensures that the output of the DACs powers up to 0 V and remains there until a valid write takes place. The AD5623R-EP contains a power-down feature that reduces the current consumption of the device to 0.48 μA at 5 V and provides software-selectable output loads while in power-down mode.

The low power consumption of this device in normal operation makes it ideally suited to portable, battery-operated equipment.

The AD5623R-EP uses a versatile, 3-wire serial interface that operates at clock rates of up to 50 MHz, and is compatible with standard SPI, QSPI™, MICROWIRE™, and DSP interface standards. The on-chip precision output amplifier enables rail-to-rail output swing to be achieved. Additional application and technical information can be found in the AD5623R data sheet.
