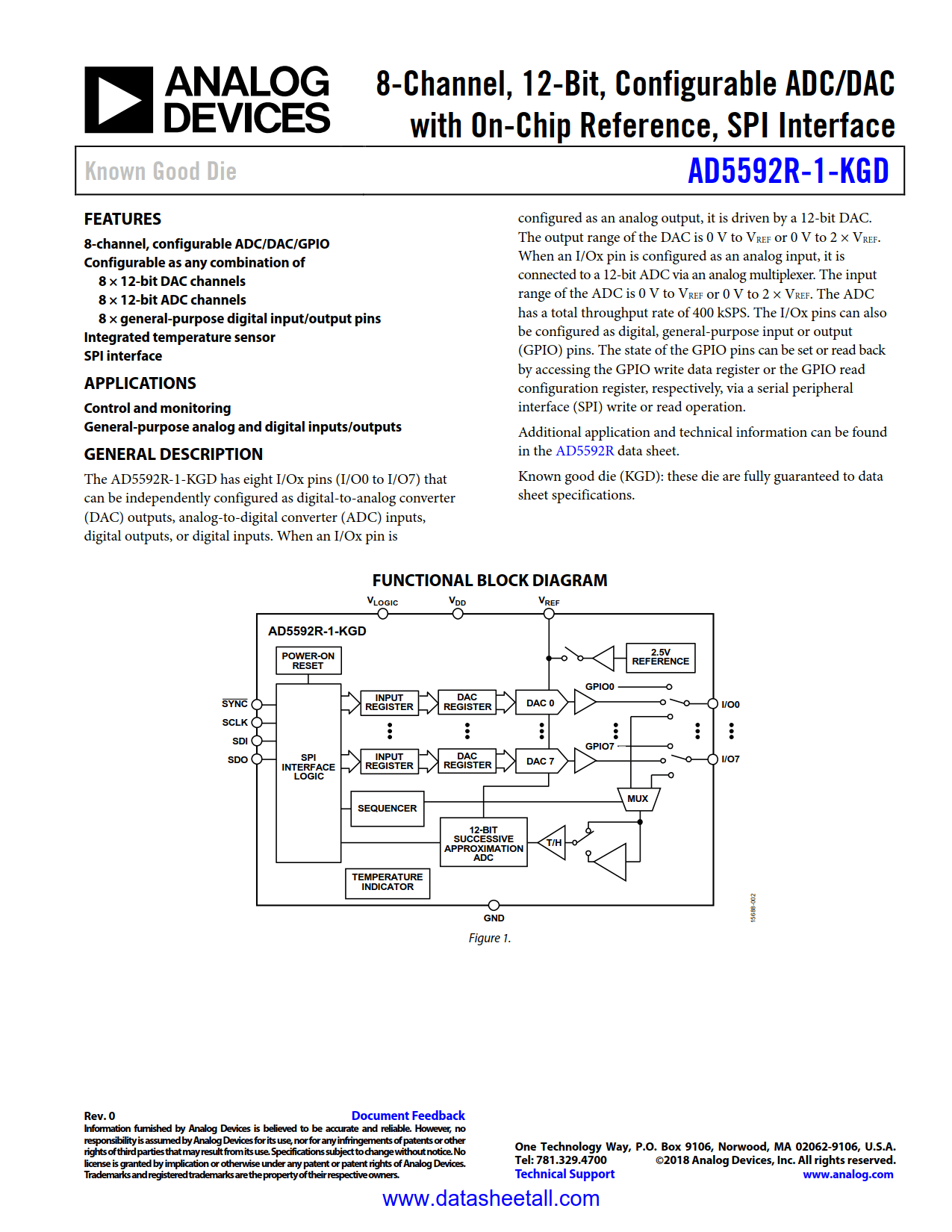

AD5592R-1-KGD Datasheet

• 8-channel, configurable ADC/DAC/GPIO
• Configurable as any combination of
  • 8 × 12-bit DAC channels
  • 8 × 12-bit ADC channels
  • 8 × general-purpose digital input/output pins
• Integrated temperature sensor
• SPI interface

• Control and monitoring
• General-purpose analog and digital inputs/outputs

The AD5592R-1-KGD has eight I/Ox pins (I/O0 to I/O7) that can be independently configured as digital-to-analog converter(DAC) outputs, analog-to-digital converter (ADC) inputs,digital outputs, or digital inputs. When an I/Ox pin is configured as an analog output, it is driven by a 12-bit DAC. The output range of the DAC is 0 V to VREF or 0 V to 2 × VREF.When an I/Ox pin is configured as an analog input, it is connected to a 12-bit ADC via an analog multiplexer. The input range of the ADC is 0 V to V_REF or 0 V to 2 × V_REF. The ADC has a total throughput rate of 400 kSPS. The I/Ox pins can also be configured as digital, general-purpose input or output (GPIO) pins. The state of the GPIO pins can be set or read back by accessing the GPIO write data register or the GPIO read configuration register, respectively, via a serial peripheral interface (SPI) write or read operation.

Additional application and technical information can be found in the AD5592R data sheet.

Known good die (KGD): these die are fully guaranteed to data sheet specifications.
