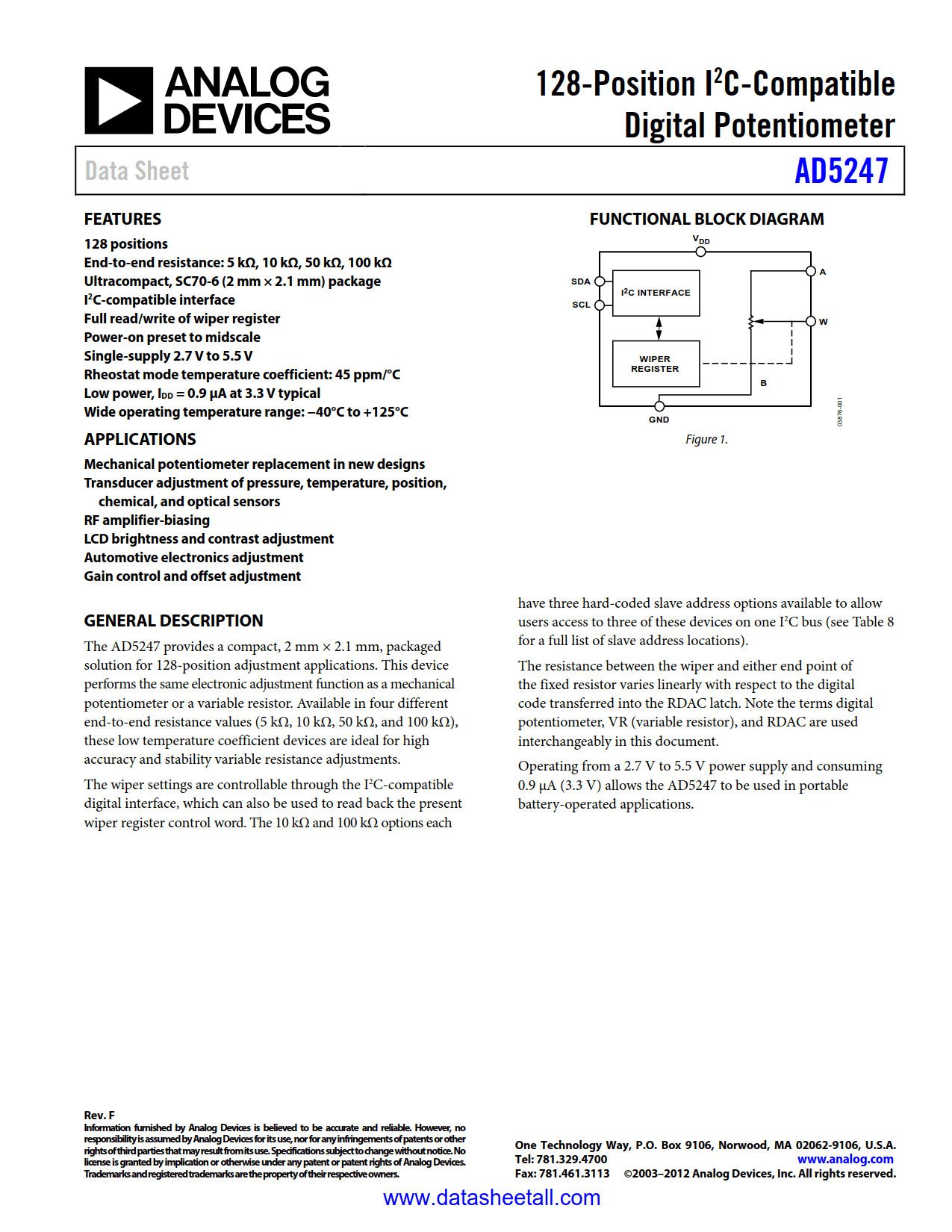

AD5247 Datasheet

• 128 positions
• End-to-end resistance: 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ
• Ultracompact, SC70-6 (2 mm × 2.1 mm) package
• I²C-compatible interface
• Full read/write of wiper register
• Power-on preset to midscale
• Single-supply 2.7 V to 5.5 V
• Low temperature coefficient: 45 ppm/°C
• Low power, I_DD = 3 μA typical
• Wide operating temperature range: –40°C to +125°C
• Available in Pb–free package
• Evaluation board available

• Mechanical potentiometer replacement in new designs
• Transducer adjustment of pressure, temperature, position, chemical, and optical sensors
• RF amplifier-biasing
• LCD brightness and contrast adjustment
• Automotive electronics adjustment
• Gain control and offset adjustment

The AD5247 provides a compact, 2 mm × 2.1 mm, packaged solution for 128-position adjustment applications. This device performs the same electronic adjustment function as a mechanical potentiometer or a variable resistor. Available in four different end-to-end resistance values (5 kΩ, 10 kΩ, 50 kΩ, and 100 kΩ), these low temperature coefficient devices are ideal for high accuracy and stability variable resistance adjustments.

The wiper settings are controllable through the I²C^®-compatible digital interface, which can also be used to read back the present wiper register control word. The 10 kΩ and 100 kΩ options each have three hard-coded slave address options available to allow users access to three of these devices on one I2C bus (see Table 8 for a full list of slave address locations).

The resistance between the wiper and either end point of the fixed resistor varies linearly with respect to the digital code transferred into the RDAC latch. Note the terms digital potentiometer, VR (variable resistor), and RDAC are used interchangeably in this document.

Operating from a 2.7 V to 5.5 V power supply and consuming 3 μA allows the AD5247 to be used in portable battery-operated applications
