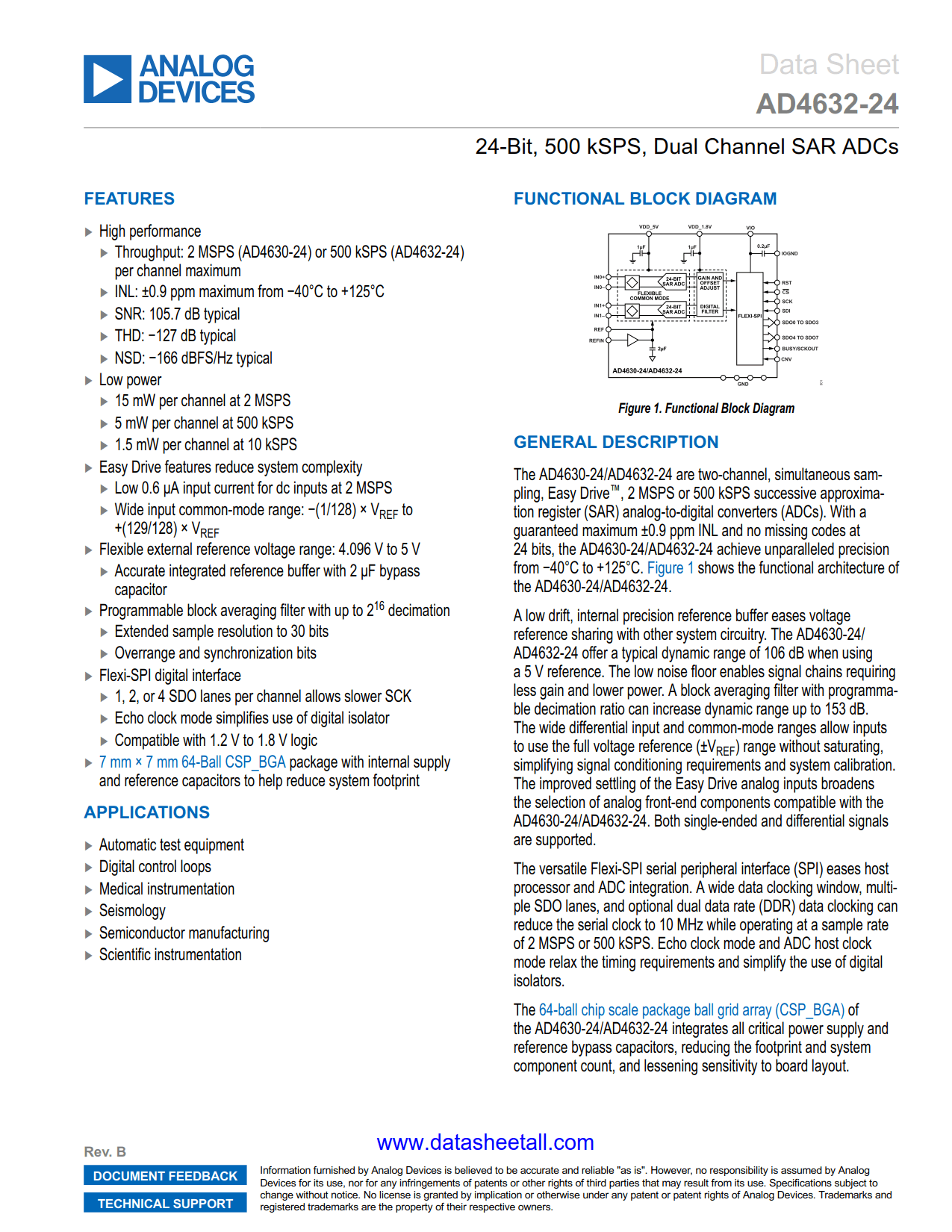

AD4632-24 Datasheet

• High performance
  • Throughput: 500 kSPS (AD4632-24) per channel maximum
  • INL: ±0.9 ppm maximum from −40°C to +125°C
  • SNR: 105.7 dB typical
  • THD: −127 dB typical
  • NSD: −166 dBFS/Hz typical
• Low power
  • 15 mW per channel at 2 MSPS
  • 5 mW per channel at 500 kSPS
  • 1.5 mW per channel at 10 kSPS
• Easy Drive features reduce system complexity
  • Low 0.6 μA input current for dc inputs at 2 MSPS
  • Wide input common-mode range: −(1/128) × V_REF to +(129/128) × V_REF
• Flexible external reference voltage range: 4.096 V to 5 V
  • Accurate integrated reference buffer with 2 μF bypass capacitor
• Programmable block averaging filter with up to 2¹⁶ decimation
  • Extended sample resolution to 30 bits
  • Overrange and synchronization bits
• Flexi-SPI digital interface
  • 1, 2, or 4 SDO lanes per channel allows slower SCK
  • Echo clock mode simplifies use of digital isolator
  • Compatible with 1.2 V to 1.8 V logic
• 7 mm × 7 mm 64-Ball CSP_BGA package with internal supply and reference capacitors to help reduce system footprint

• Automatic test equipment
• Digital control loops
• Medical instrumentation
• Seismology
• Semiconductor manufacturing
• Scientific instrumentation

The AD4632-24 are two-channel, simultaneous sampling, Easy Drive^™, 500 kSPS successive approximation register (SAR) analog-to-digital converters (ADCs). With a guaranteed maximum ±0.9 ppm INL and no missing codes at 24 bits, the AD4632-24 achieve unparalleled precision from −40°C to +125°C. Figure 1 in the data sheet shows the functional architecture of the AD4632-24.

A low drift, internal precision reference buffer eases voltage reference sharing with other system circuitry. The AD4632-24 offer a typical dynamic range of 106 dB when using a 5 V reference. The low noise floor enables signal chains requiring less gain and lower power. A block averaging filter with programmable decimation ratio can increase dynamic range up to 153 dB. The wide differential input and common-mode ranges allow inputs to use the full voltage reference (±V_REF) range without saturating, simplifying signal conditioning requirements and system calibration. The improved settling of the Easy Drive analog inputs broadens the selection of analog front-end components compatible with the AD4632-24. Both single-ended and differential signals are supported.

The versatile Flexi-SPI serial peripheral interface (SPI) eases host processor and ADC integration. A wide data clocking window, multiple SDO lanes, and optional dual data rate (DDR) data clocking can reduce the serial clock to 10 MHz while operating at a sample rate of 2 MSPS or 500 kSPS. Echo clock mode and ADC host clock mode relax the timing requirements and simplify the use of digital isolators.

The 64-ball chip scale package ball grid array (CSP_BGA) of the AD4632-24 integrates all critical power supply and reference bypass capacitors, reducing the footprint and system component count, and lessening sensitivity to board layout.
