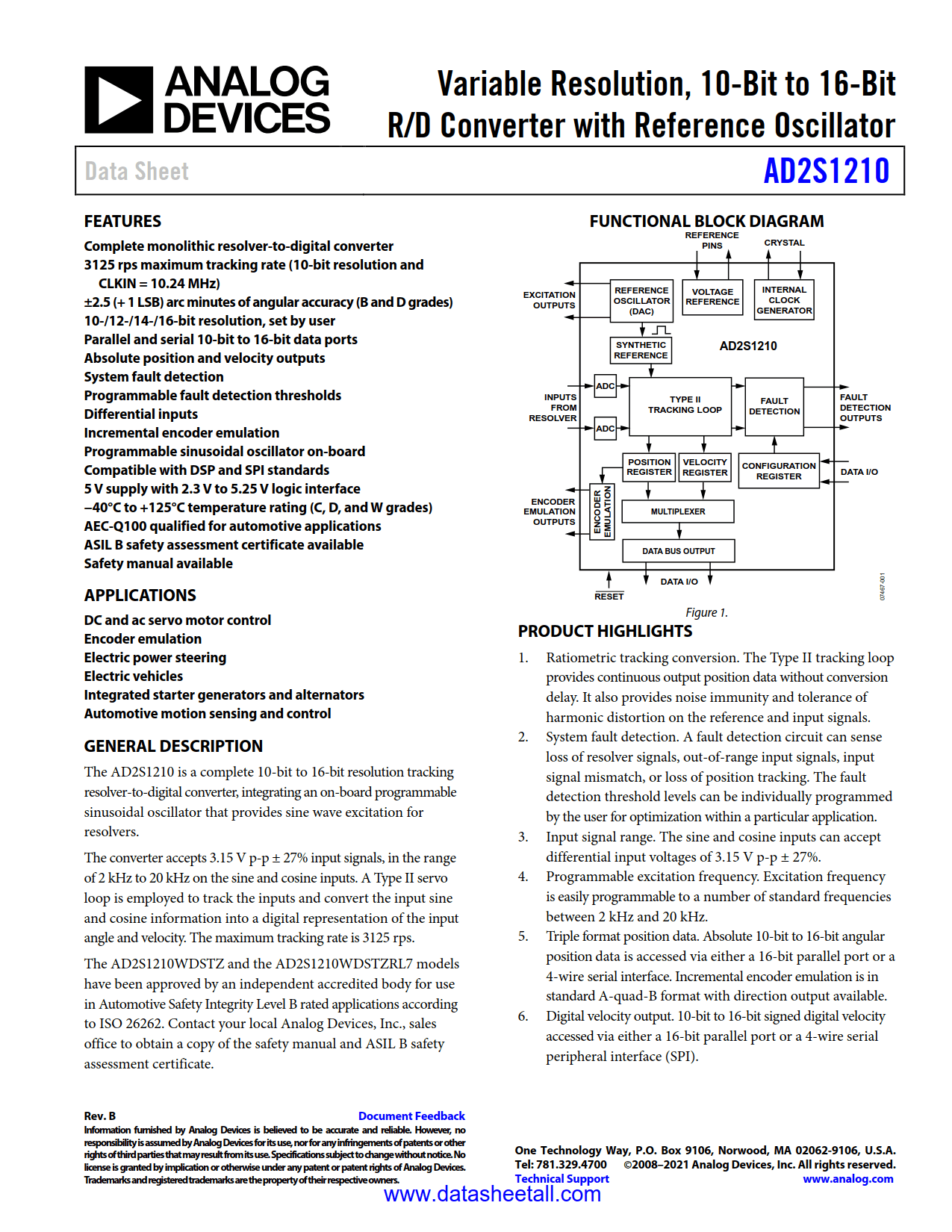

AD2S1210 Datasheet

• Complete monolithic resolver-to-digital converter
• 3125 rps maximum tracking rate (10-bit resolution and CLKIN = 10.24 MHz)
• ±2.5 (+ 1 LSB) arc minutes of angular accuracy (B and D grades)
• 10-/12-/14-/16-bit resolution, set by user
• Parallel and serial 10-bit to 16-bit data ports
• Absolute position and velocity outputs
• System fault detection
• Programmable fault detection thresholds
• Differential inputs
• Incremental encoder emulation
• Programmable sinusoidal oscillator on-board
• Compatible with DSP and SPI standards
• 5 V supply with 2.3 V to 5.25 V logic interface
• −40°C to +125°C temperature rating (C, D, and W grades)
• AEC-Q100 qualified for automotive applications
• ASIL B safety assessment certificate available
• Safety manual available

• DC and ac servo motor control
• Encoder emulation
• Electric power steering
• Electric vehicles
• Integrated starter generators/alternators
• Automotive motion sensing and control

The AD2S1210 is a complete 10-bit to 16-bit resolution tracking resolver-to-digital converter, integrating an on-board programmable sinusoidal oscillator that provides sine wave excitation for resolvers.

The converter accepts 3.15 V p-p ± 27% input signals, in the range of 2 kHz to 20 kHz on the sine and cosine inputs. A Type II servo loop is employed to track the inputs and convert the input sine and cosine information into a digital representation of the input angle and velocity. The maximum tracking rate is 3125 rps.

The AD2S1210WDSTZ and the AD2S1210WDSTZRL7 models have been approved by an independent accredited body for use in Automotive Safety Integrity Level B rated applications according to ISO 26262. Contact your local Analog Devices, Inc., sales office to obtain a copy of the safety manual and ASIL B safety assessment certificate.
