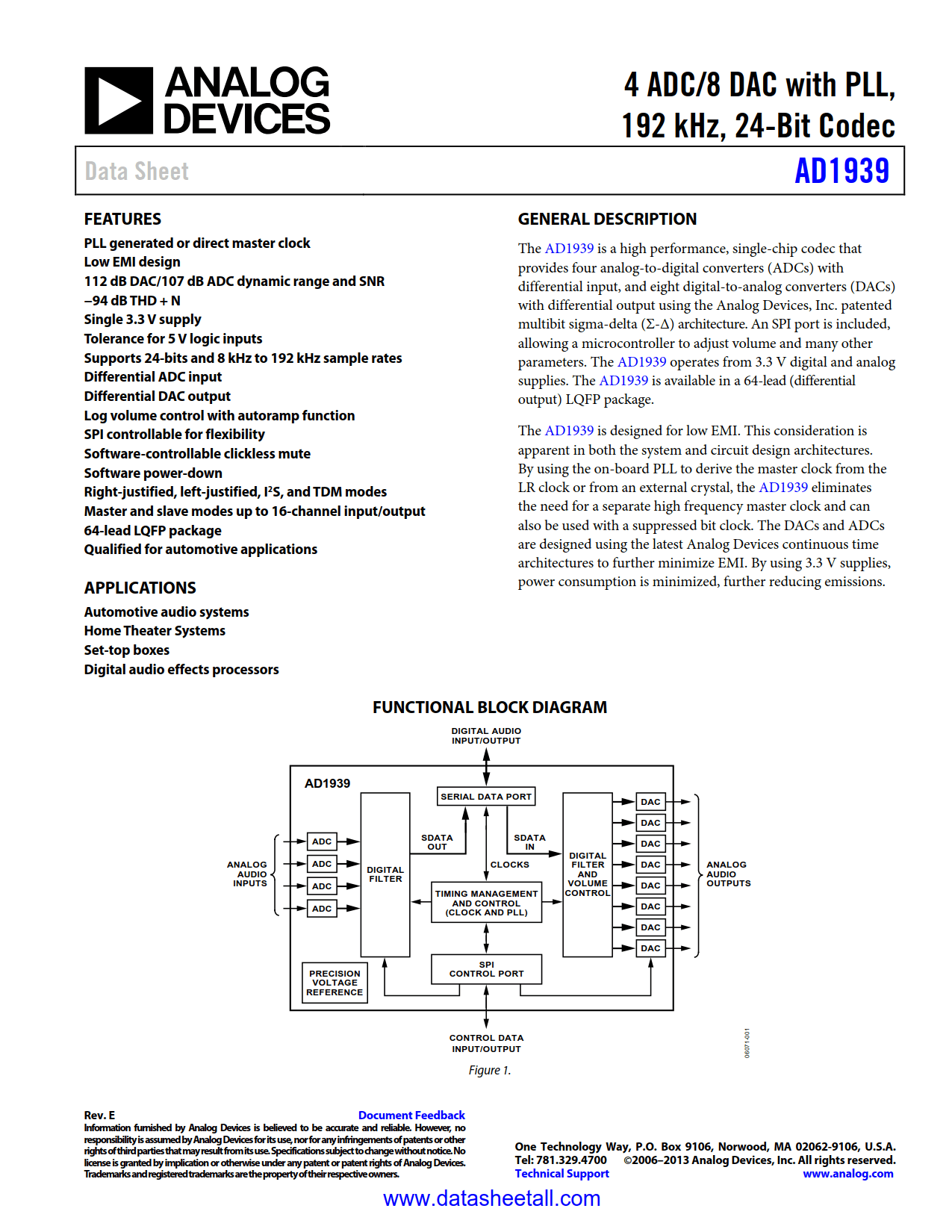

AD1939 Datasheet

• PLL generated or direct master clock
• Low EMI design
• 112 dB DAC/107 dB ADC dynamic range and SNR
• −94 dB THD + N
• Differential ADC input
• Single 3.3 V supply
• Tolerance for 5 V logic inputs
• See datasheet for additional features

• Automotive audio systems
• Home Theater Systems
• Set-top boxes
• Digital audio effects processors

The AD1939 is a high performance, single-chip codec that provides four analog-to-digital converters (ADCs) with differential input, and eight digital-to-analog converters (DACs) with differential output using the Analog Devices, Inc. patented multibit sigma-delta (Σ-Δ) architecture. An SPI port is included, allowing a microcontroller to adjust volume and many other parameters. The AD1939 operates from 3.3 V digital and analog supplies. The AD1939 is available in a 64-lead (differential output) LQFP package.

The AD1939 is designed for low EMI. This consideration is apparent in both the system and circuit design architectures. By using the on-board PLL to derive the master clock from the LR clock or from an external crystal, the AD1939 eliminates the need for a separate high frequency master clock and can also be used with a suppressed bit clock. The DACs and ADCs are designed using the latest Analog Devices continuous time architectures to further minimize EMI. By using 3.3 V supplies, power consumption is minimized, further reducing emissions.
