| Part No.： | LTC4421 |
| Page： | 32 Pages |
| Size： | 1770 KB |
| Manufacturer： | Linear Technology |
| Website： | www.analog.com |
| Logo： |  |
| Views： | 0 |
| Update Time： | 2024-05-05 15:53:09 |
| DataSheet： | Download |

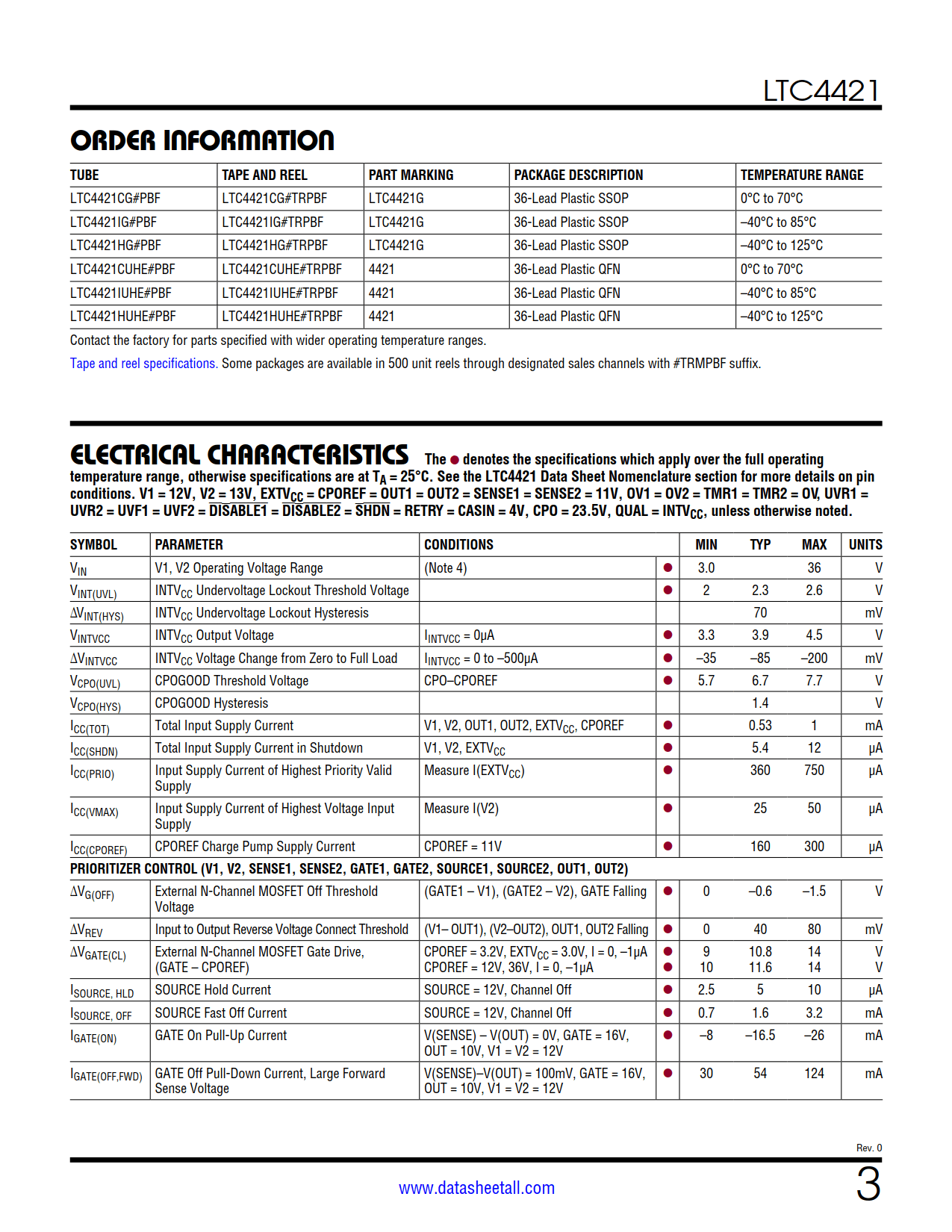

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC4421CG#PBF | Tube | 37 | LTC4421G | 1 | 36 | 0°C ~70°C | 36-Lead Plastic SSOP | |
| LTC4421CG#TRPBF | Reel | 2000 | LTC4421G | 1 | 36 | 0°C ~70°C | 36-Lead Plastic SSOP | |
| LTC4421CG#TRMPBF | Reel | 500 | LTC4421G | 1 | 36 | 0°C ~70°C | 36-Lead Plastic SSOP | |
| LTC4421IG#PBF | Tube | 37 | LTC4421G | 1 | 36 | -40°C ~85°C | 36-Lead Plastic SSOP | |
| LTC4421IG#TRPBF | Reel | 2000 | LTC4421G | 1 | 36 | -40°C ~85°C | 36-Lead Plastic SSOP | |
| LTC4421IG#TRMPBF | Reel | 500 | LTC4421G | 1 | 36 | -40°C ~85°C | 36-Lead Plastic SSOP | |
| LTC4421HG#PBF | Tube | 37 | LTC4421G | 1 | 36 | -40°C ~125°C | 36-Lead Plastic SSOP | |
| LTC4421HG#TRPBF | Reel | 2000 | LTC4421G | 1 | 36 | -40°C ~125°C | 36-Lead Plastic SSOP | |
| LTC4421HG#TRMPBF | Reel | 500 | LTC4421G | 1 | 36 | -40°C ~125°C | 36-Lead Plastic SSOP | |
| LTC4421CUHE#PBF | Tube | 61 | 4421 | 1 | 36 | 0°C ~70°C | 36-Lead Plastic QFN | |
| LTC4421CUHE#TRPBF | Reel | 2500 | 4421 | 1 | 36 | 0°C ~70°C | 36-Lead Plastic QFN | |
| LTC4421CUHE#TRMPBF | Reel | 500 | 4421 | 1 | 36 | 0°C ~70°C | 36-Lead Plastic QFN | |
| LTC4421IUHE#PBF | Tube | 61 | 4421 | 1 | 36 | -40°C ~85°C | 36-Lead Plastic QFN | |
| LTC4421IUHE#TRPBF | Reel | 2500 | 4421 | 1 | 36 | -40°C ~85°C | 36-Lead Plastic QFN | |
| LTC4421IUHE#TRMPBF | Reel | 500 | 4421 | 1 | 36 | -40°C ~85°C | 36-Lead Plastic QFN | |
| LTC4421HUHE#PBF | Tube | 61 | 4421 | 1 | 36 | -40°C ~125°C | 36-Lead Plastic QFN | |
| LTC4421HUHE#TRPBF | Reel | 2500 | 4421 | 1 | 36 | -40°C ~125°C | 36-Lead Plastic QFN | |
| LTC4421HUHE#TRMPBF | Reel | 500 | 4421 | 1 | 36 | -40°C ~125°C | 36-Lead Plastic QFN |

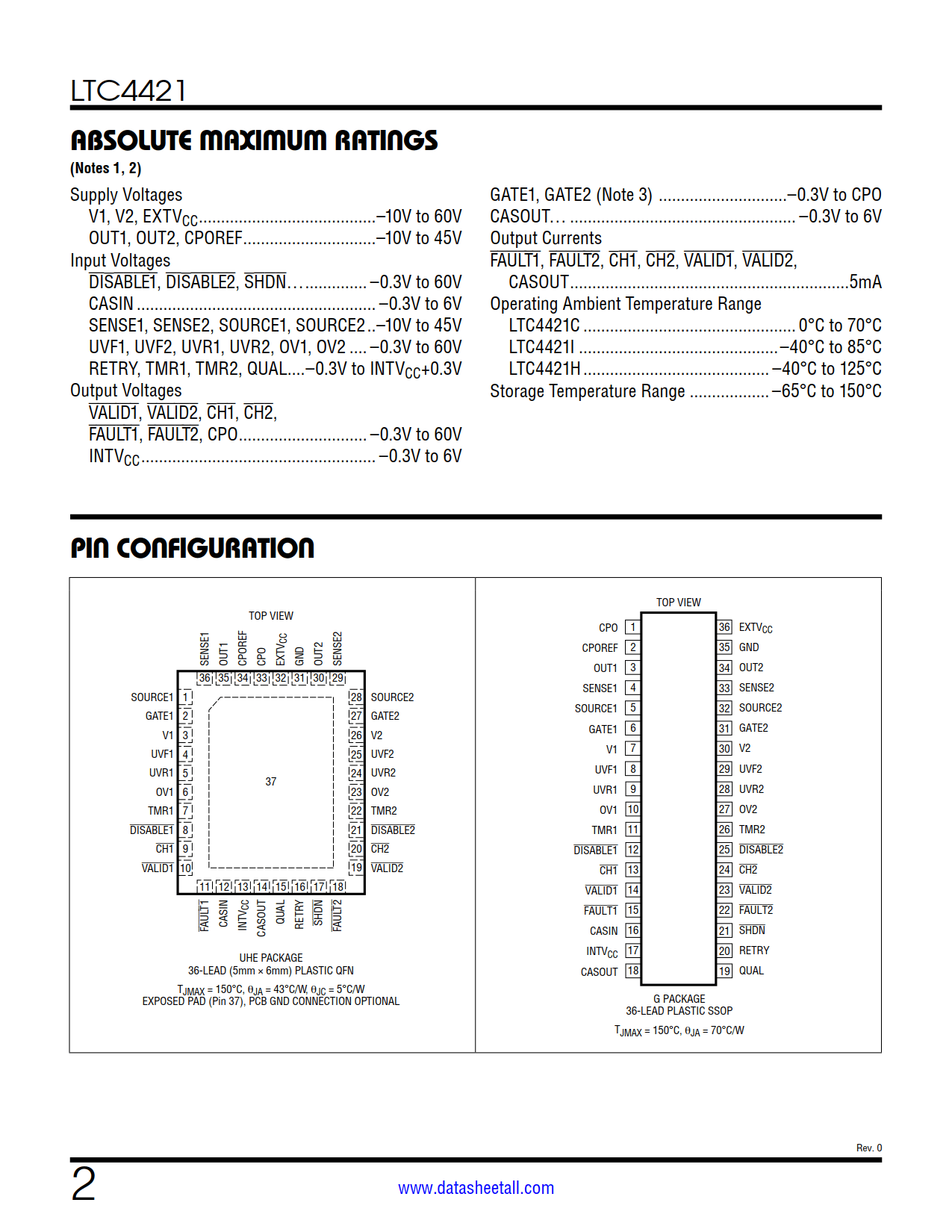

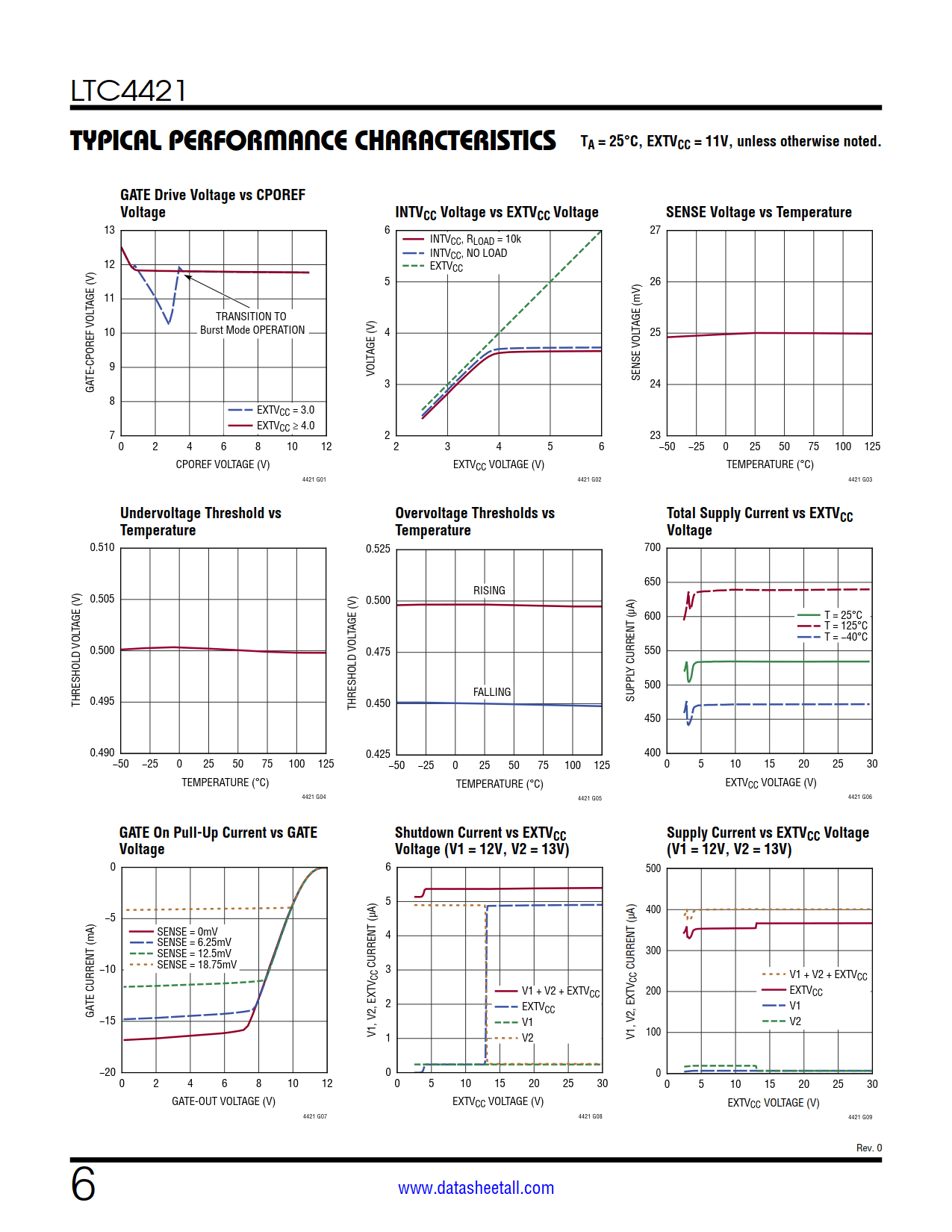

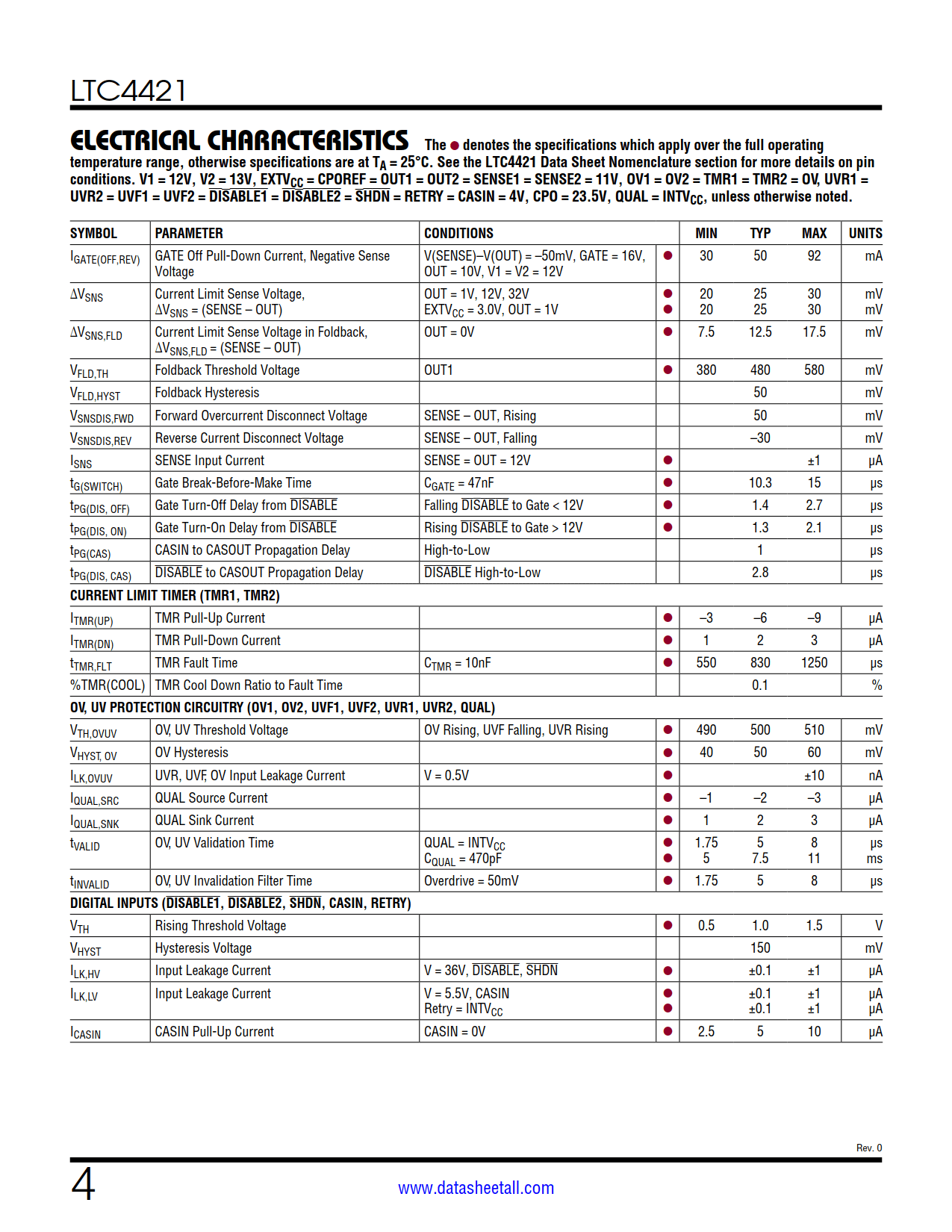

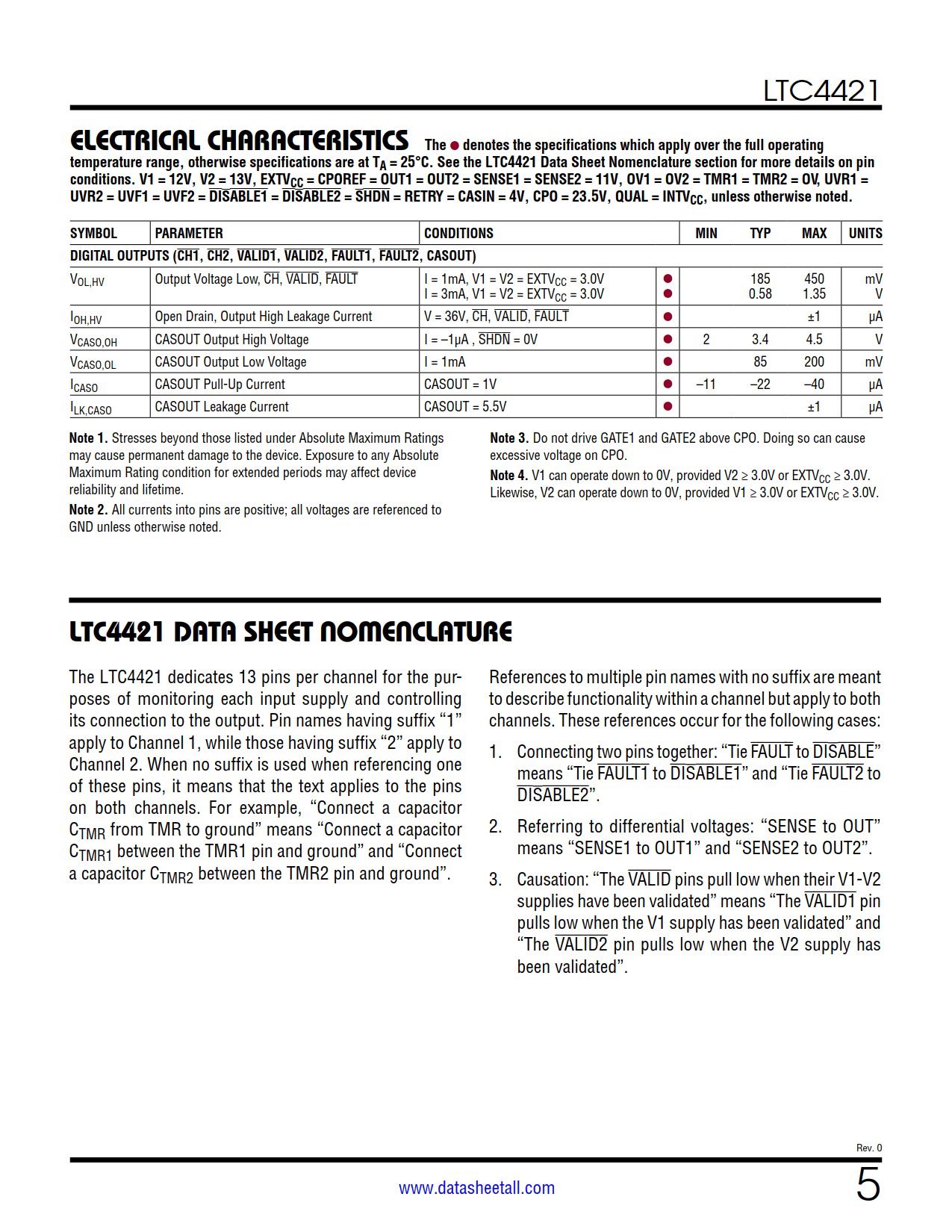

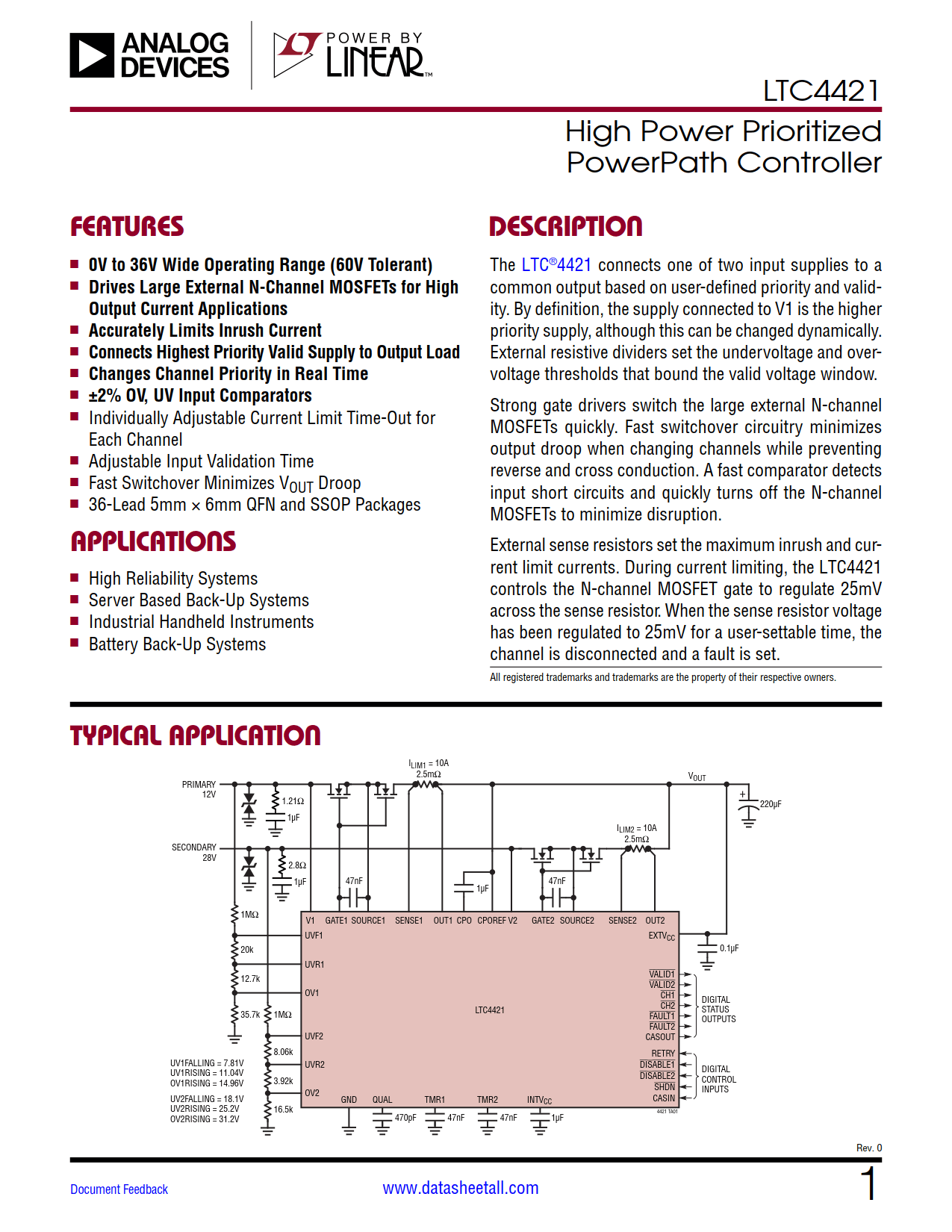

The LTC4421 connects one of two input supplies to a common output based on user-defined priority and validity. By definition, the supply connected to V1 is the higher priority supply, although this can be changed dynamically. External resistive dividers set the undervoltage and overvoltage thresholds that bound the valid voltage window.
Strong gate drivers switch the large external N-channel MOSFETs quickly. Fast switchover circuitry minimizes output droop when changing channels while preventing reverse and cross conduction. A fast comparator detects input short circuits and quickly turns off the N-channel MOSFETs to minimize disruption.
External sense resistors set the maximum inrush and current limit currents. During current limiting, the LTC4421 controls the N-channel MOSFET gate to regulate 25mV across the sense resistor. When the sense resistor voltage has been regulated to 25mV for a user-settable time, the channel is disconnected and a fault is set.
