| Part No.： | LTC4419 |
| Page： | 22 Pages |
| Size： | 723 KB |
| Manufacturer： | Linear Technology |
| Website： | www.analog.com |
| Logo： |  |
| Views： | 0 |
| Update Time： | 2024-05-05 16:06:17 |
| DataSheet： | Download |

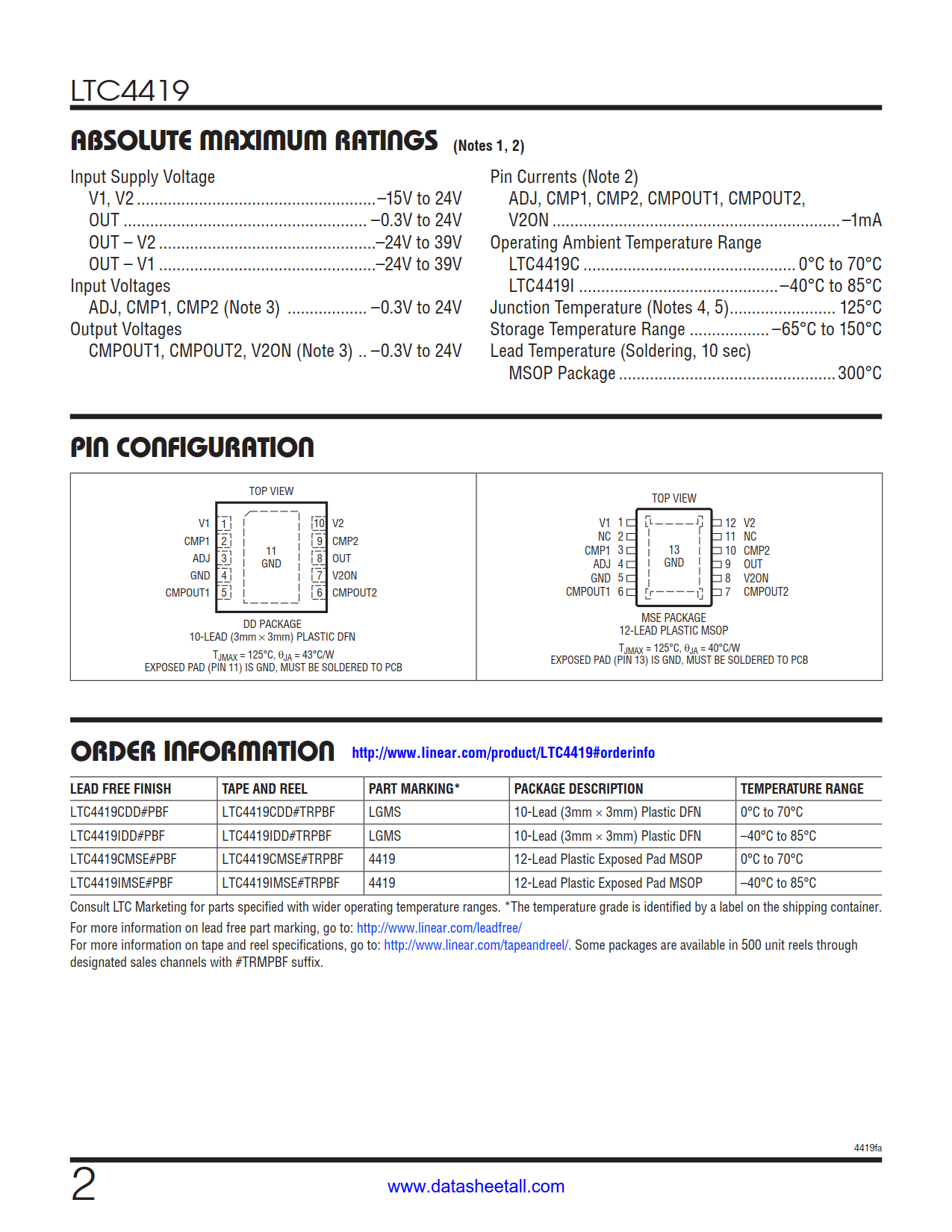

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC4419CDD#PBF | Tube | 121 | LGMS | 1 | 10 | 0°C ~70°C | 10-Lead (3mm × 3mm) Plastic DFN | |
| LTC4419CDD#TRPBF | Reel | 2500 | LGMS | 1 | 10 | 0°C ~70°C | 10-Lead (3mm × 3mm) Plastic DFN | |
| LTC4419CDD#TRMPBF | Reel | 500 | LGMS | 1 | 10 | 0°C ~70°C | 10-Lead (3mm × 3mm) Plastic DFN | |
| LTC4419IDD#PBF | Tube | 121 | LGMS | 1 | 10 | -40°C ~85°C | 10-Lead (3mm × 3mm) Plastic DFN | |
| LTC4419IDD#TTPBF | Reel | 2500 | LGMS | 1 | 10 | -40°C ~85°C | 10-Lead (3mm × 3mm) Plastic DFN | |
| LTC4419IDD#TRMPBF | Reel | 500 | LGMS | 1 | 10 | -40°C ~85°C | 10-Lead (3mm × 3mm) Plastic DFN | |
| LTC4419CMSE#PBF | Tube | 37 | 4419 | 1 | 12 | 0°C ~70°C | 12-Lead Plastic Exposed Pad MSOP | |
| LTC4419CMSE#TRPBF | Reel | 2500 | 4419 | 1 | 12 | 0°C ~70°C | 12-Lead Plastic Exposed Pad MSOP | |
| LTC4419CMSE#TRMPBF | Reel | 500 | 4419 | 1 | 12 | 0°C ~70°C | 12-Lead Plastic Exposed Pad MSOP | |
| LTC4419IMSE#PBF | Tube | 37 | 4419 | 1 | 12 | -40°C ~85°C | 12-Lead Plastic Exposed Pad MSOP | |
| LTC4419IMSE#TRPBF | Reel | 2500 | 4419 | 1 | 12 | -40°C ~85°C | 12-Lead Plastic Exposed Pad MSOP | |
| LTC4419IMSE#TRMPBF | Reel | 500 | 4419 | 1 | 12 | -40°C ~85°C | 12-Lead Plastic Exposed Pad MSOP |

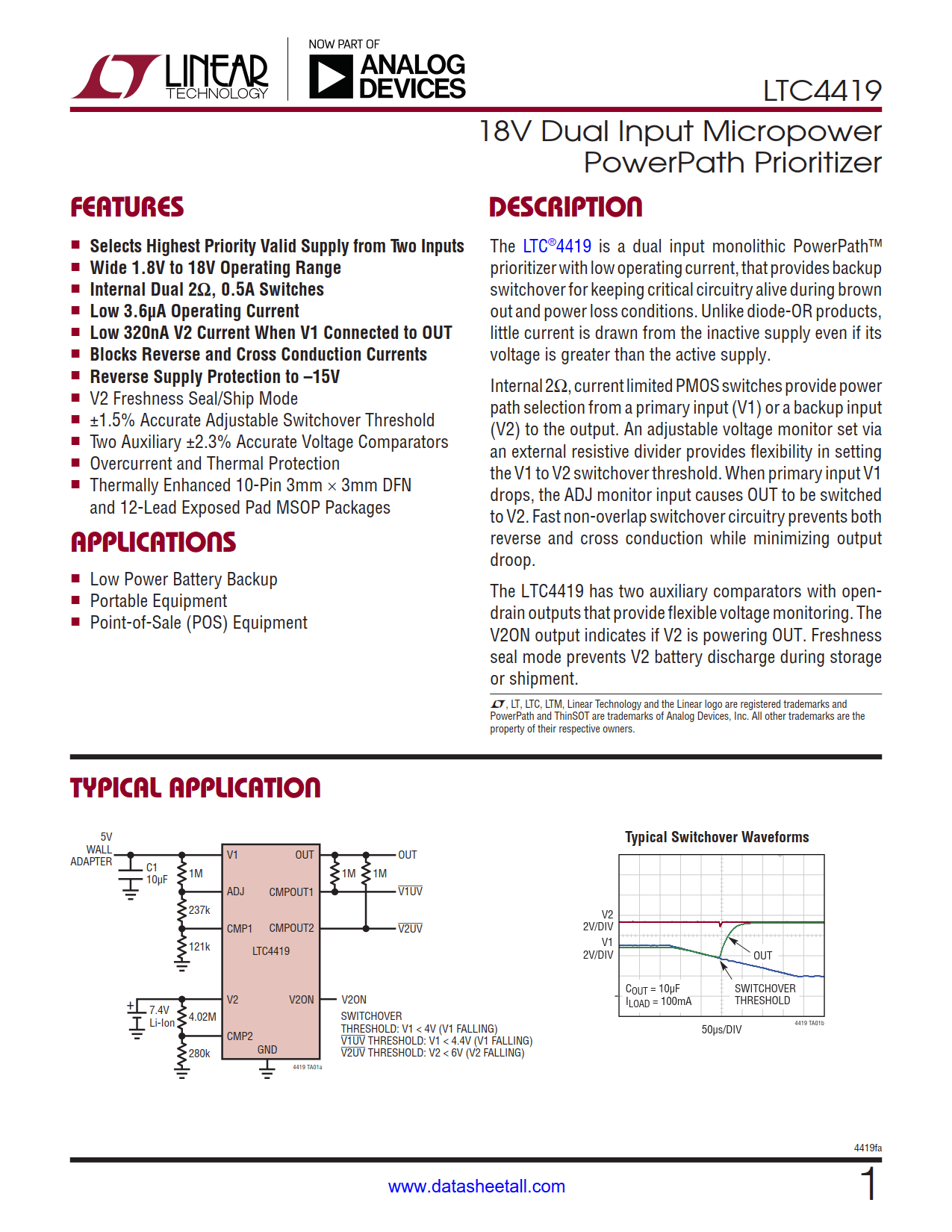

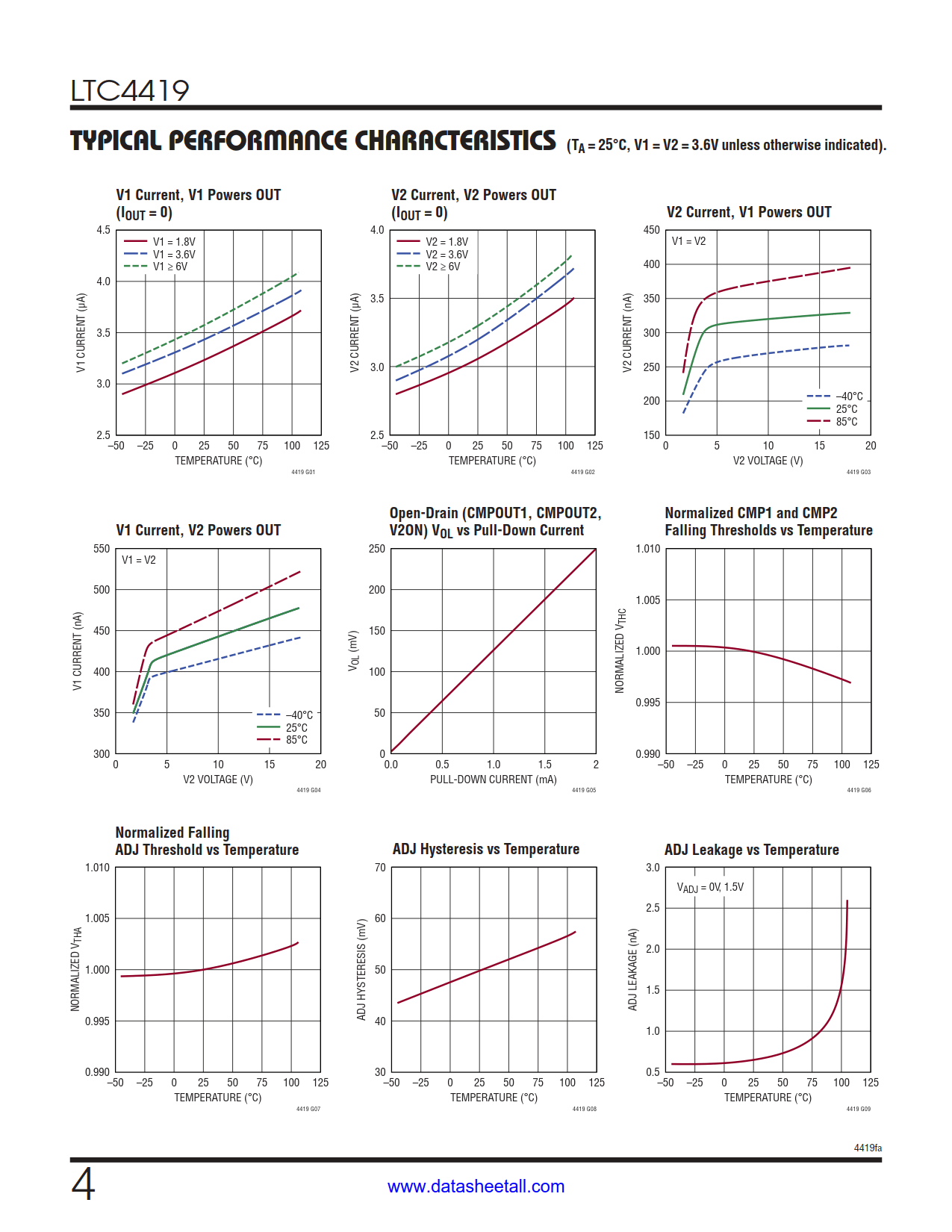

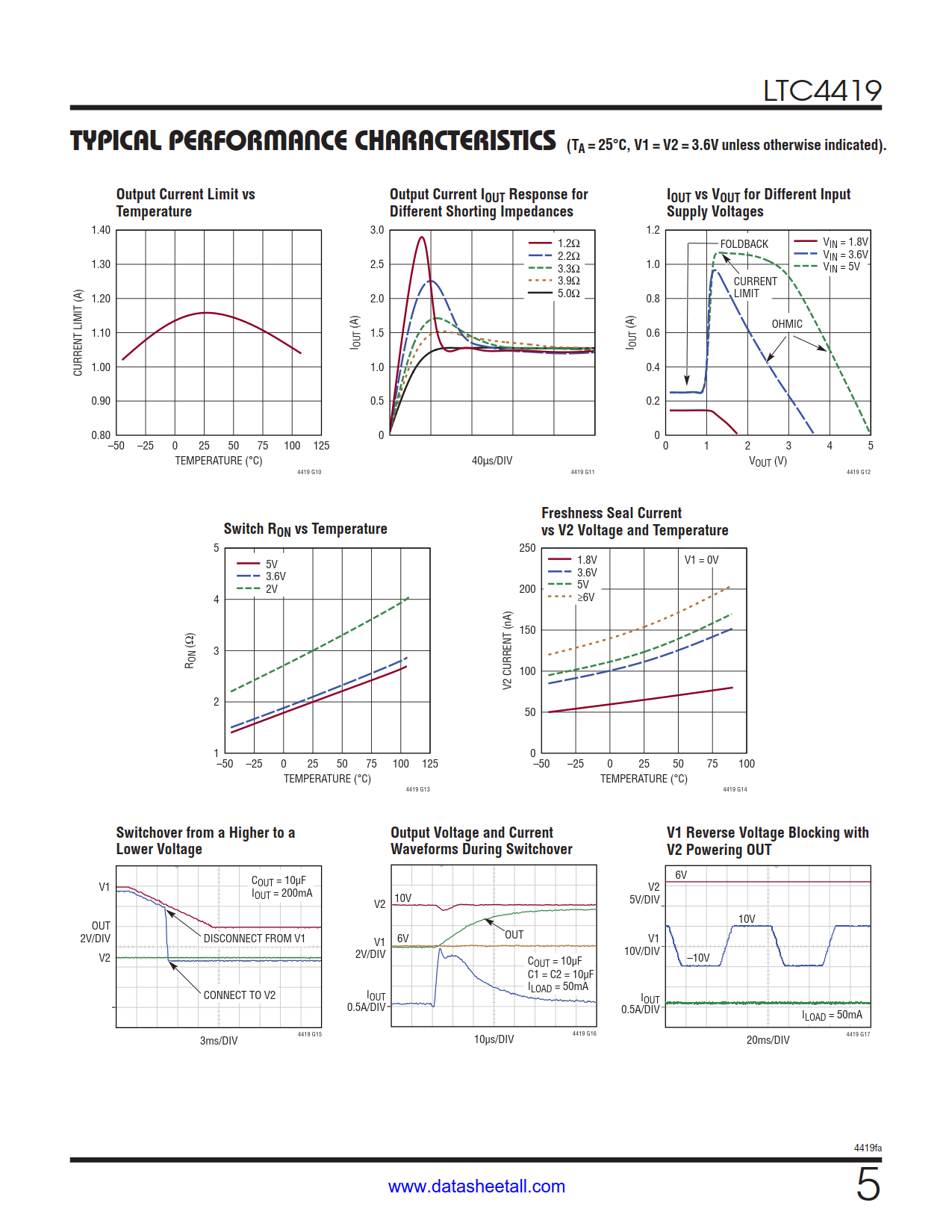

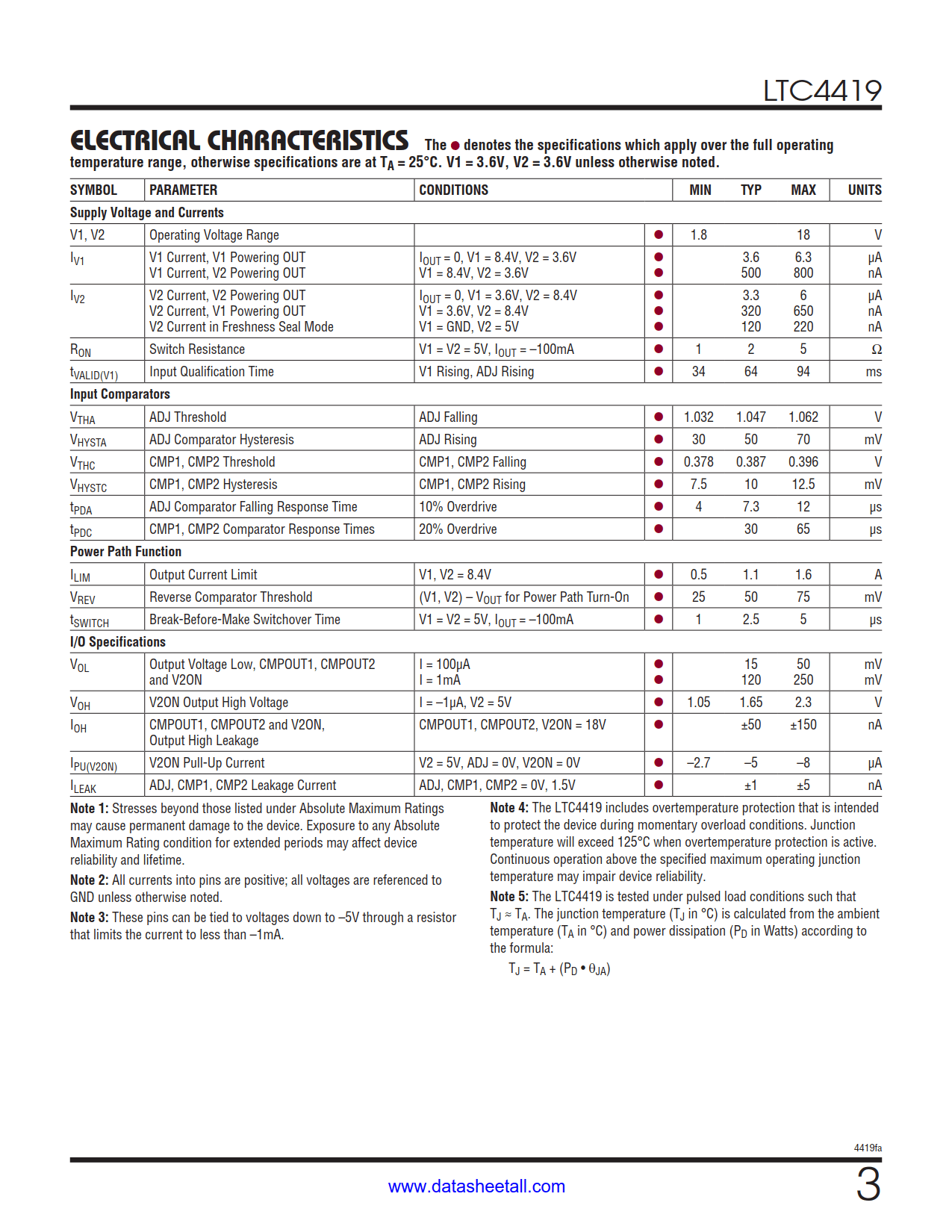

The LTC4419 is a dual input monolithic PowerPath™ prioritizer with low operating current, that provides backup switchover for keeping critical circuitry alive during brown out and power loss conditions. Unlike diode-OR products, little current is drawn from the inactive supply even if its voltage is greater than the active supply.

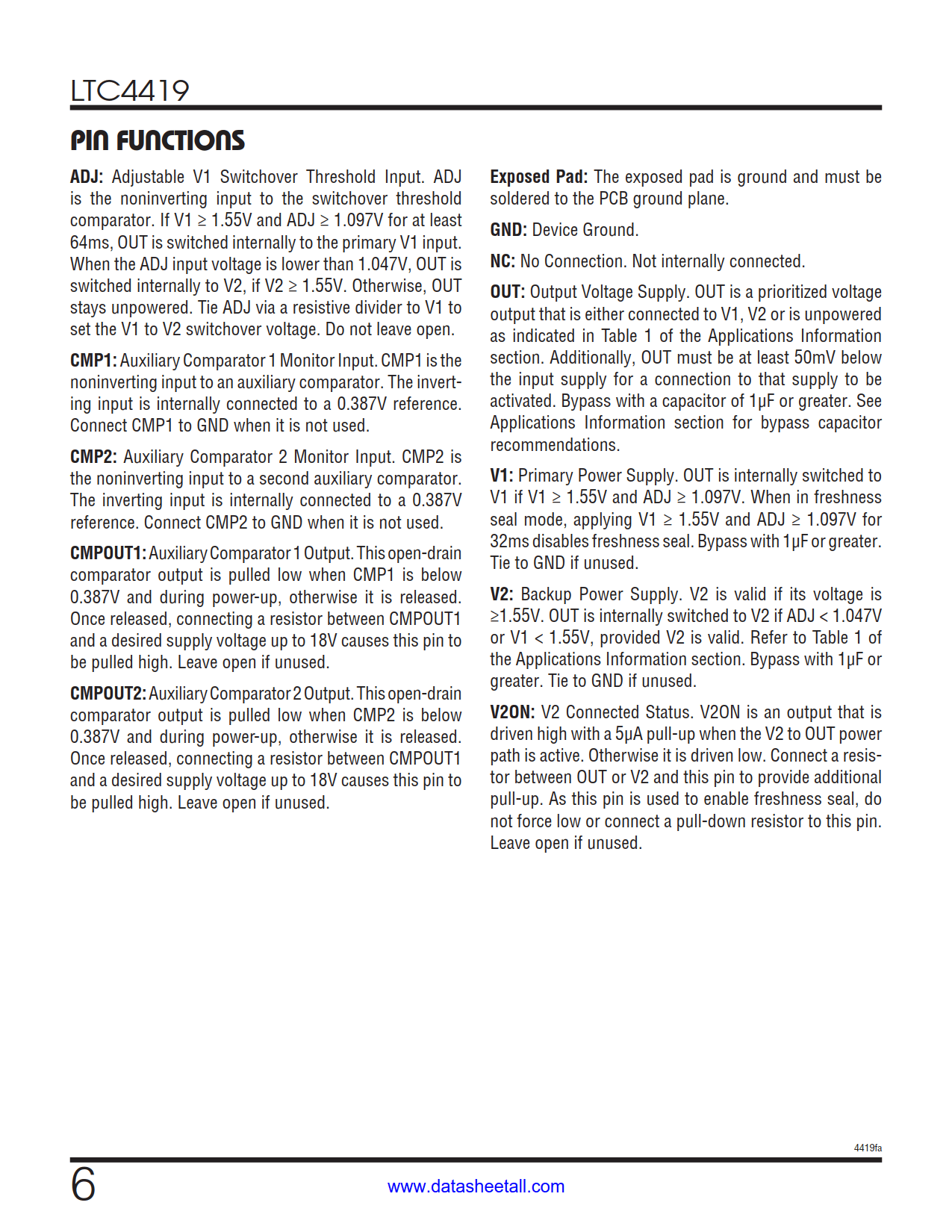

Internal 2Ω, current limited PMOS switches provide power path selection from a primary input (V1) or a backup input (V2) to the output. An adjustable voltage monitor set via an external resistive divider provides flexibility in setting the V1 to V2 switchover threshold. When primary input V1 drops, the ADJ monitor input causes OUT to be switched to V2. Fast non-overlap switchover circuitry prevents both reverse and cross conduction while minimizing output droop.
The LTC4419 has two auxiliary comparators with open-drain outputs that provide flexible voltage monitoring. The V2ON output indicates if V2 is powering OUT. Freshness seal mode prevents V2 battery discharge during storage or shipment.
