| Part No.： | LTC3204B-3.3 |
| Page： | 12 Pages |
| Size： | 497 KB |
| Manufacturer： | Linear Technology |
| Website： | www.analog.com |
| Logo： |  |
| Views： | 0 |
| Update Time： | 2024-04-29 14:28:29 |
| DataSheet： | Download |

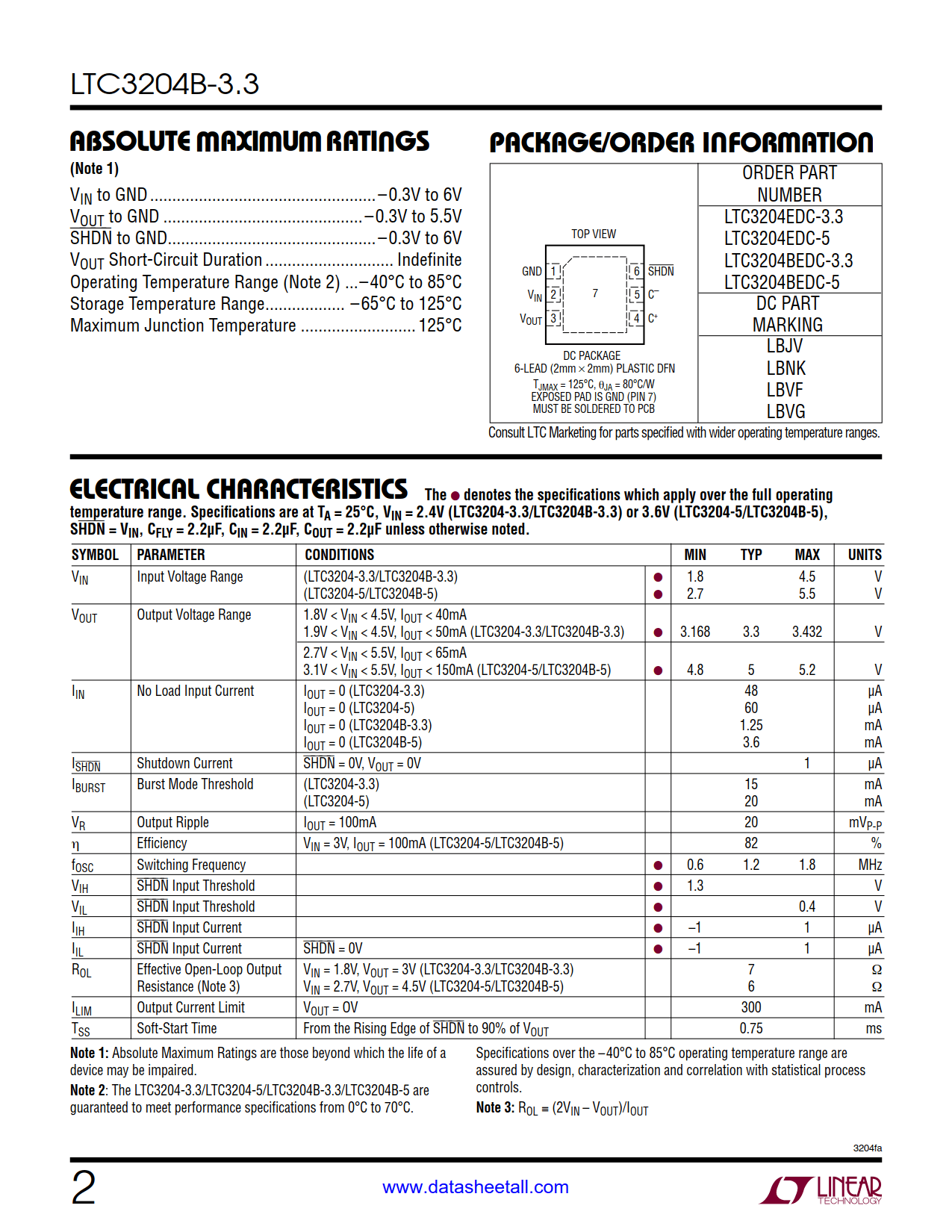

| Part No. | Packing | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| LTC3204BEDC-3.3#PBF | Tube | LBVF | 1 | 6 | -40°C ~125°C | 6-Lead DFN (2mm x 2mm) | ||
| LTC3204BEDC-3.3#TRPBF | Reel | 2500 | LBVF | 1 | 6 | -40°C ~125°C | 6-Lead DFN (2mm x 2mm) | |
| LTC3204BEDC-3.3#TRMPBF | Reel | 500 | LBVF | 1 | 6 | -40°C ~125°C | 6-Lead DFN (2mm x 2mm) |

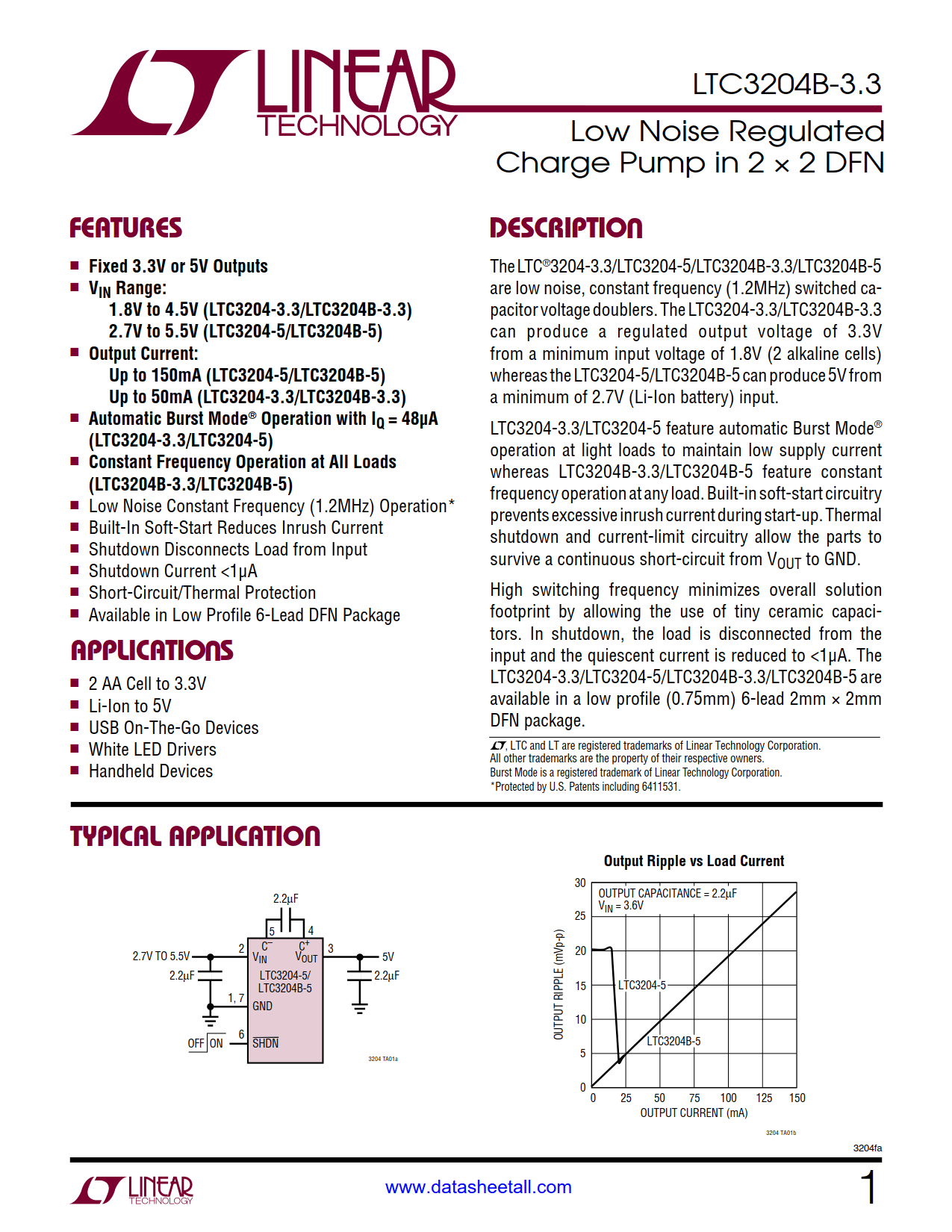

The LTC3204B-3.3 are low noise, constant frequency (1.2MHz) switched capacitor voltage doublers. The LTC3204B-3.3 can produce a regulated output voltage of 3.3V from a minimum input voltage of 1.8V (2 alkaline cells).
LTC3204B-3.3 feature constant frequency operation at any load. Built-in soft-start circuitry prevents excessive inrush current during start-up. Thermal shutdown and current-limit circuitry allow the parts to survive a continuous short-circuit from VOUT to GND.
High switching frequency minimizes overall solution footprint by allowing the use of tiny ceramic capacitors. In shutdown, the load is disconnected from the input and the quiescent current is reduced to <1µA.
The LTC3204B-3.3 are available in a low profile (0.75mm) 6-lead 2mm × 2mm DFN package.
